Shining3D Inspect
Modular 3D inspection, PTB-certified.
Why SHINING3D Inspect?
The modular, PTB-certified software combines scanning, analysis and reporting – on a desktop workstation, directly on the scanner or in automated workflows.
Highlights:
- PTB-certified measurement capability
- Streamlined workflow with integrated hardware and software
- Industry-specific inspection modules
- Customisable inspection reports

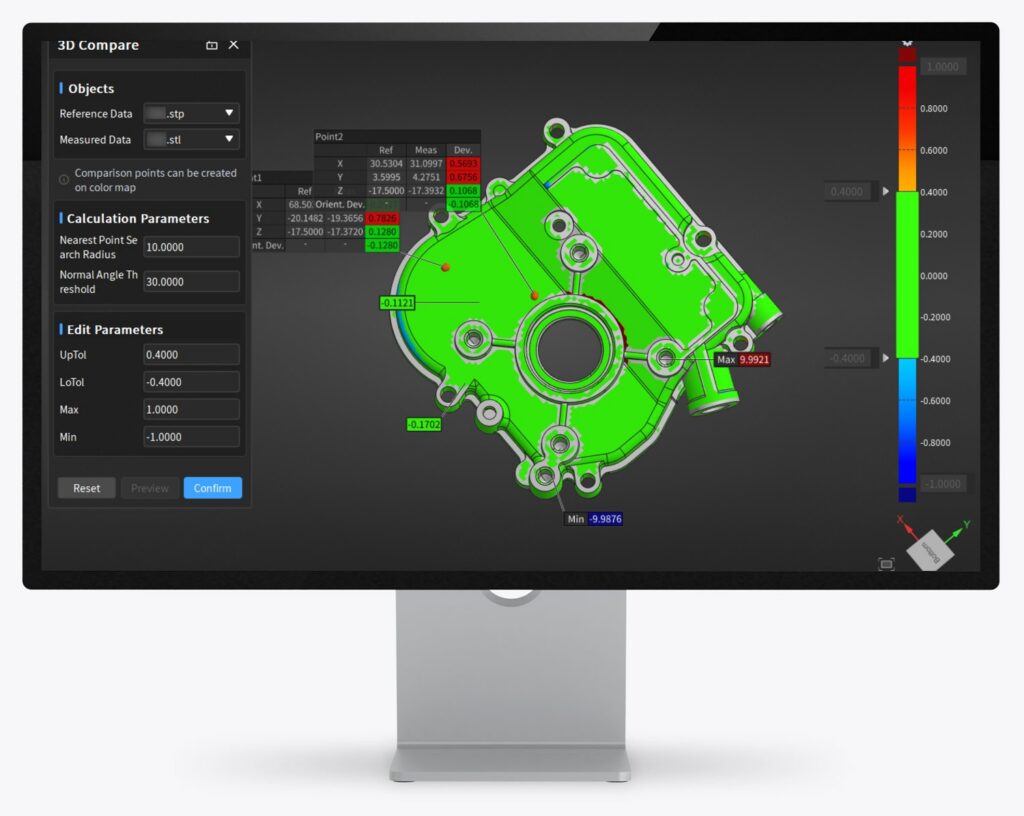

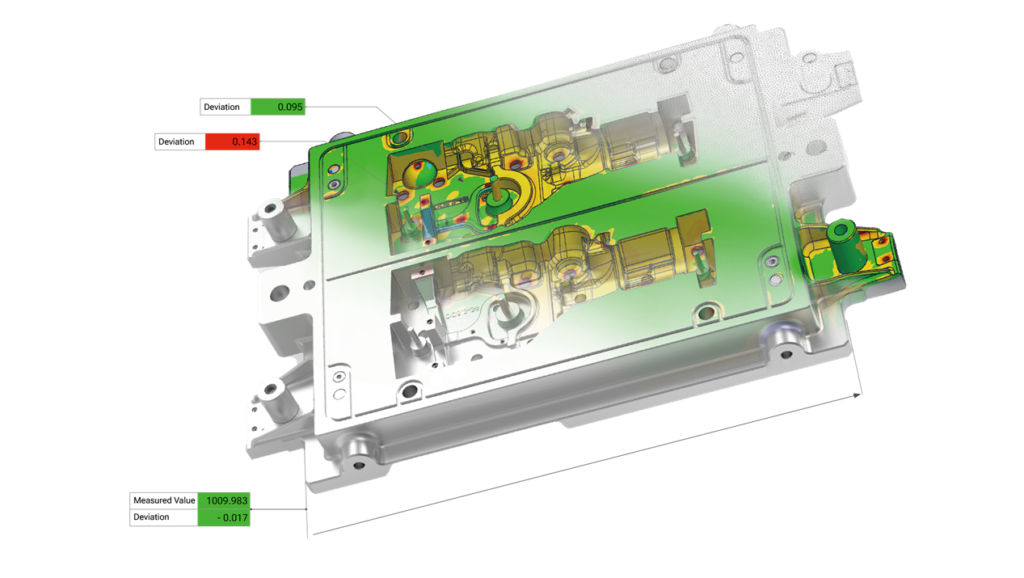

Full-field deviation analysis
Scan data is compared with the CAD model across the full field and displayed as a 3D colour map. 2D cross-section analyses and freely adjustable colour scales are also available.

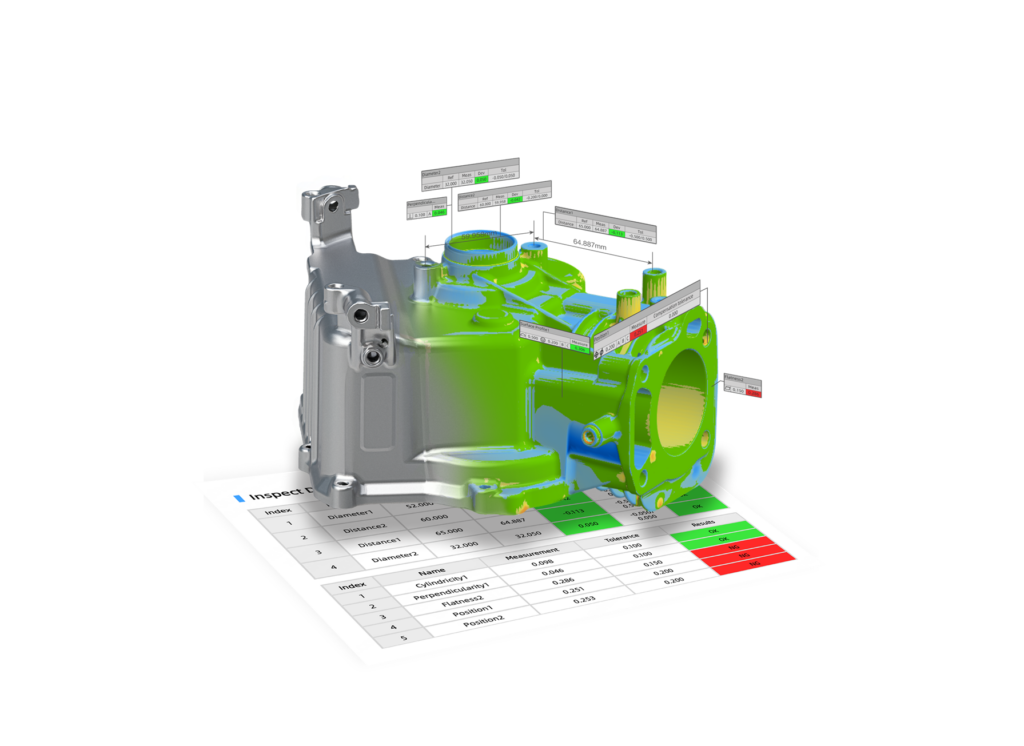

Standard-compliant GD&T evaluation
Switchable between ISO and ASME: critical dimensions are evaluated according to GD&T and the tolerances of functional features are reliably verified.

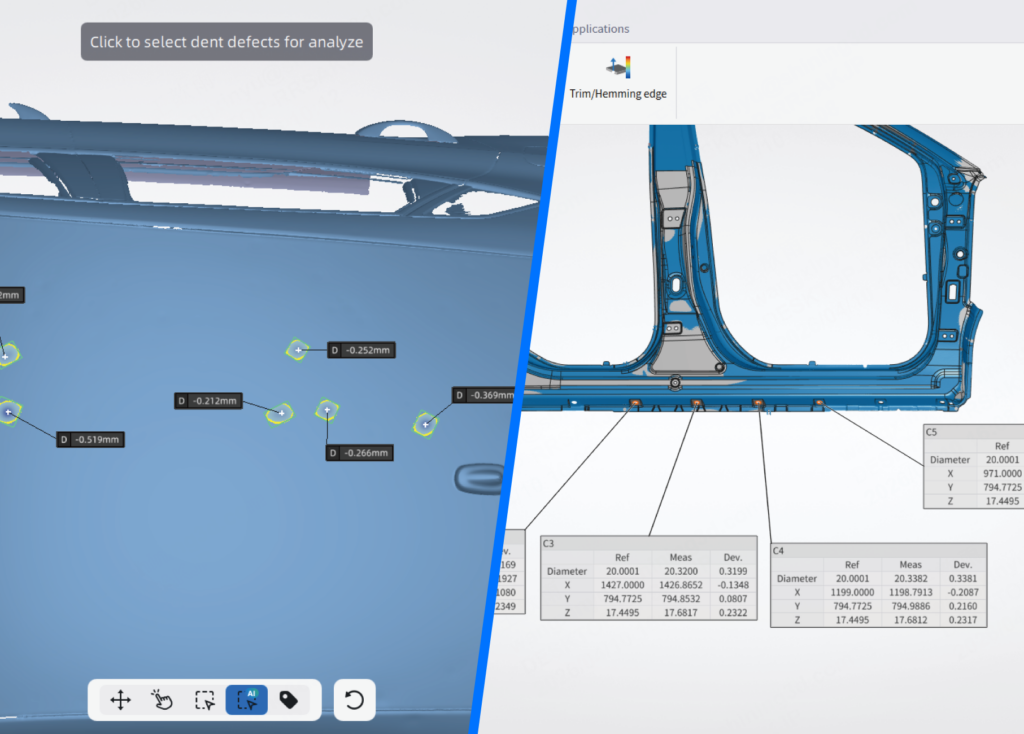

Application-oriented inspection modules
The dent inspection module detects dents and surface deviations. The sheet metal inspection module analyses deformation, springback and profile deviations.

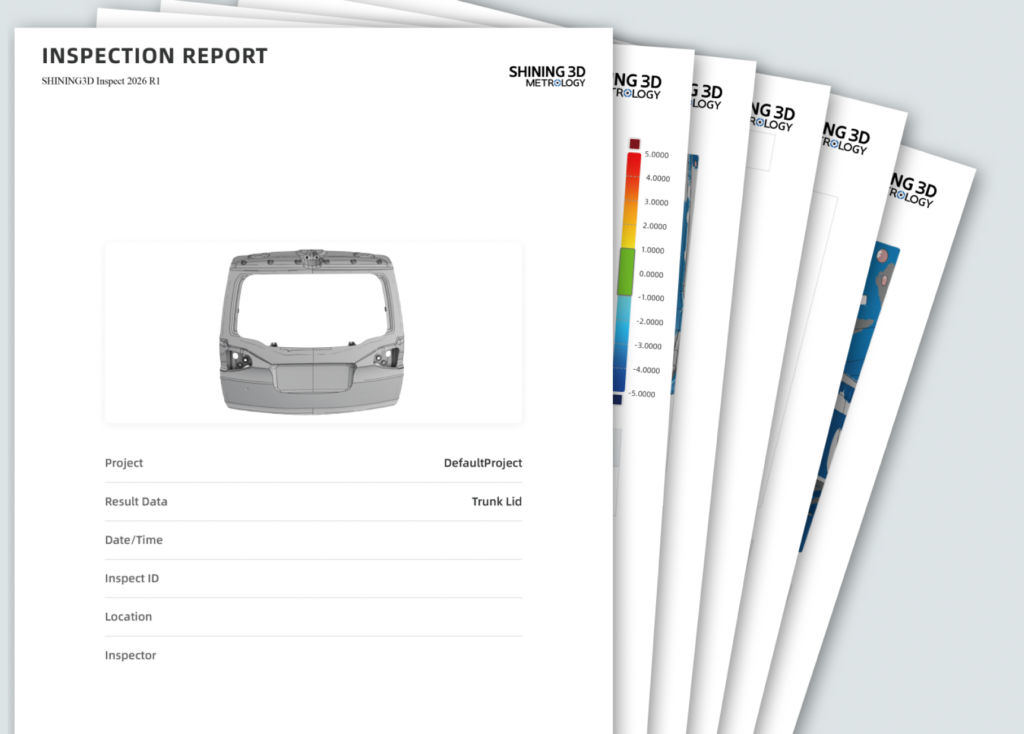

Automated, customisable reporting
Structured reports with a clear presentation of deviations and measured values – fully documented and traceable.
Flexible deployment

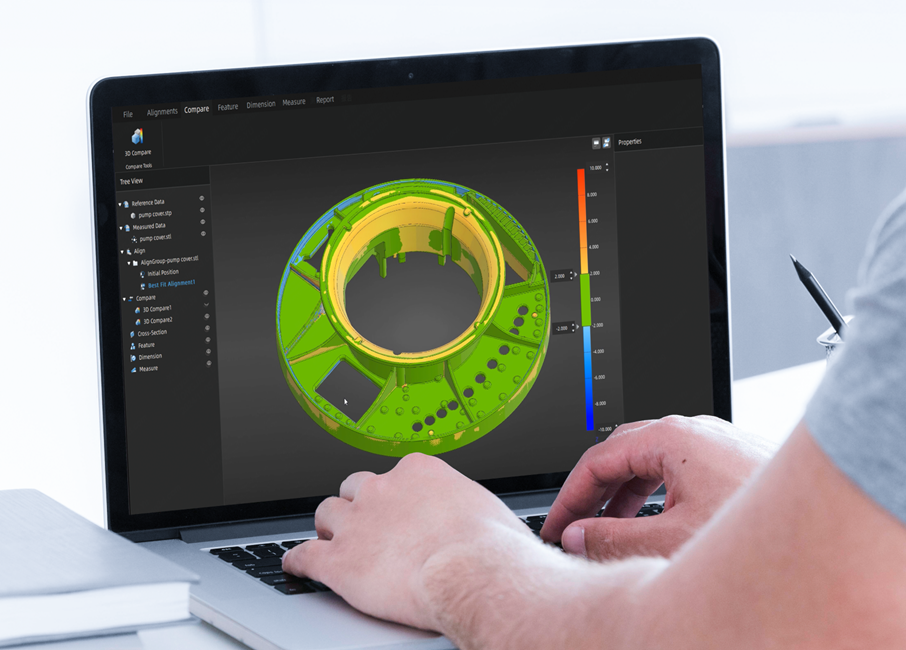

Desktop inspection
Full functionality on a standard workstation.

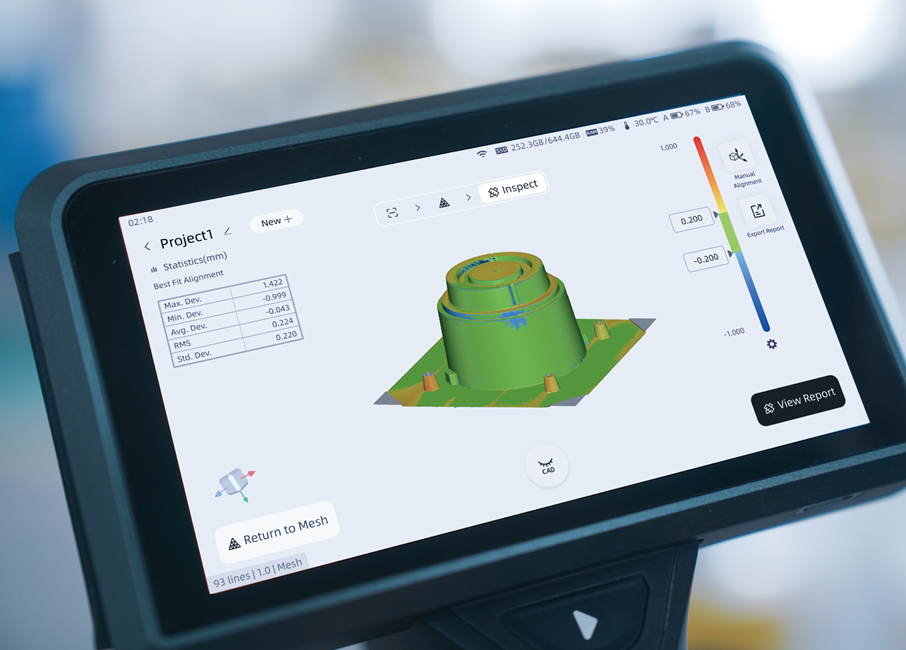

On-device inspection
Inspection directly on the FreeScan Omni 3D scanner.

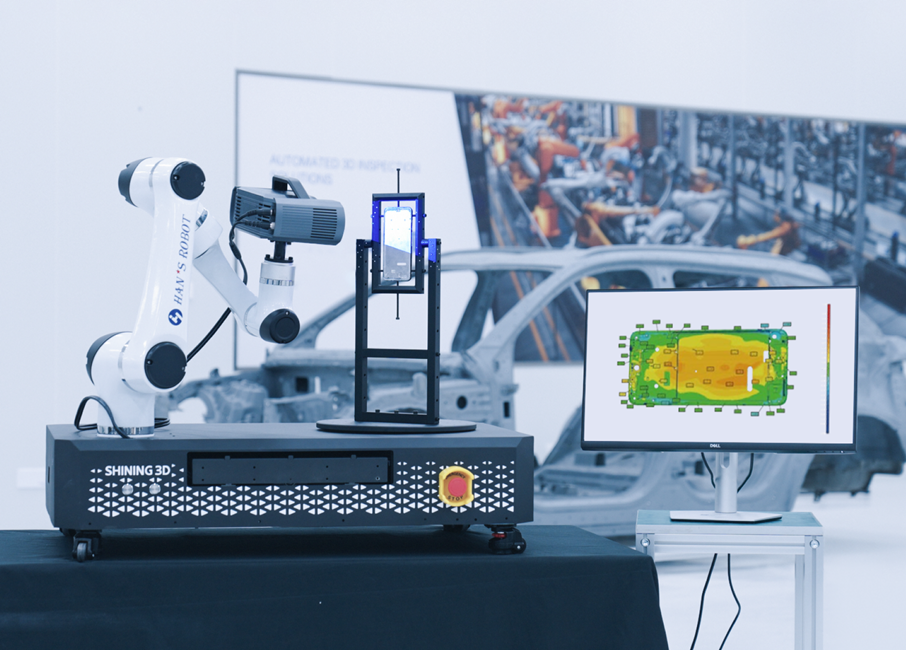

Automated inspection
Integration into automated systems for repeatable inspection workflows.
More features
Multi-format data import and management
Versatile alignment tools
2D dimension inspection
2D and 3D comparison
Measurement tools
Intelligent feature recognition
Cross-section analysis
Light and dark UI
Downloads
Technical specifications
| Operating system | Windows 10 (64-bit) and Windows 11 (64-bit) |
|---|---|
| Processor | Intel Core i7-11800H or higher |
| Graphics card | NVIDIA GTX 1050 or higher At least 2 GB graphics memory An NVIDIA graphics card is recommended; an integrated graphics card may affect performance. |
| RAM | 32 GB or more |
