Shining3D EXMeasure
Measure precisely, evaluate clearly.
From scan to result
From scan data to decision-ready results – in one focused workflow. A one-year EXMeasure licence is already included with the EinScan Trak 3D scanner.
Highlights:
- PTB-certified measurement tools
- Clear tile-based interface
- Colour maps with tolerance bands
- Essential GD&T functions
- Report with PDF export
One-click best fit
The tile-based interface keeps the most important functions visible and within reach – routine measurements take fewer steps.
Full-field 3D comparison

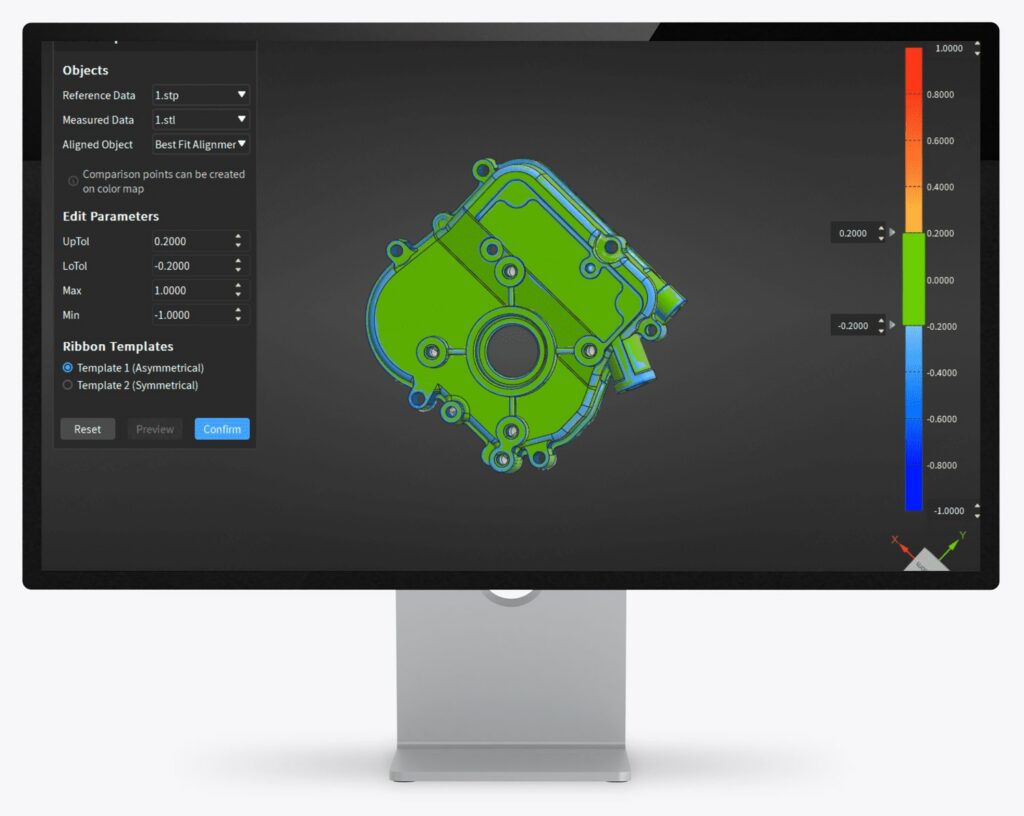

Scan data is compared with reference models and displayed as a colour map. Freely adjustable tolerance bands deliver quick pass/fail results.
Versatile feature construction
Points, lines, planes, circles, spheres, cones and cylinders are created from a CAD selection, from fitted data or by anchored construction.
Essential GD&T evaluation
Set datums and check straightness, flatness, circularity, cylindricity, parallelism and perpendicularity – with a clear in- and out-of-tolerance display.
Precise measurement
A virtual caliper measures internal and external diameters as well as distances and angles between points, lines and planes.
Clear visual report, simplified workflow
Import and manage
Load reference and measurement models; create, open and save projects.
Align
Best-fit, transformation, manual or coordinate system alignment – for the best alignment in every case.
Compare and measure
Analyse deviations, dimensions, GD&T, area, volume and caliper distances.
Report
Organise results with snapshots, 3D views, tables and PDF export.
Downloads
Technical specifications
| Operating system | Windows 10 (64-bit) and Windows 11 (64-bit) |
|---|---|
| Processor | Intel Core i7-11800H or higher |
| Graphics card | NVIDIA GTX 1050 or higher At least 2 GB graphics memory |
| RAM | 32 GB or more |
