FreeScan Combo+ Wireless

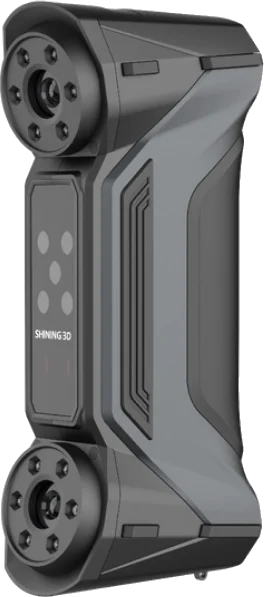

SHINING 3D FreeScan Combo+ Wireless, wireless handheld 3D scanner, front view

FreeScan Combo+ Wireless

Wireless measuring with hybrid light source

The FreeScan Combo+ Wireless is the next evolution of the SHINING 3D Combo family and works completely wirelessly. Wi-Fi 7 transfers data quickly and reliably, while 93 blue laser lines and up to 9.1 million points per second capture large surfaces in no time. Integrated video photogrammetry keeps volumetric accuracy high even on large components, and in infrared mode it scans medium-sized parts without any markers. Every unit is calibrated in a laboratory accredited to ISO/IEC 17025 and tested according to ISO 10360.
Send inquiry
  • Aerospace
  • Automotive
  • Energy

Integrated video photogrammetry (VPG)

Patented video photogrammetry continuously optimises the spatial position of the reference markers during scanning. This keeps cumulative errors low and achieves volumetric accuracy of up to 0.02 mm + 0.015 mm/m – ideal for large-scale measurements. Two validated scale bars are included, and no coded markers are required.

0.02 mm
Accuracy
0.02 mm + 0.015 mm/m
Volumetric accuracy with VPG
9,106,000 points/s
Scan speed
550 g
Weight

Wireless with Wi-Fi 7

Wi-Fi 7 and advanced anti-interference technology ensure fast, stable data transfer – on the factory floor, in confined spaces and outdoors. Wired operation is also possible.

Certified accuracy

Every scanner is calibrated in the SHINING 3D Accuracy Lab, accredited to ISO/IEC 17025, and tested according to ISO 10360 – for traceable, metrology-grade results.

Faster scanning

93 blue laser lines for large surfaces, 25 parallel lines for fine details and a frame rate of up to 180 FPS speed up data acquisition without compromising quality.

Marker-free with infrared

The infrared mode captures medium-sized, feature-rich parts without markers. The blue laser also handles black and reflective surfaces very well.

Lightweight and compact

Weighing just 550 g and designed ergonomically, the scanner sits comfortably in the hand. The optimised camera angle makes it easier to work in narrow, complex areas and along seams.

Long runtime

Three swappable batteries with up to 2 hours of runtime each are included. The rapid-charging dock charges two batteries while the third is in use.

From scan to inspection report

Inspection-ready workflow

With a single click, scan data goes straight to SHINING3D Inspect – for dimensional inspection, GD&T analysis, colour deviation maps and automated reports. For reverse engineering, the scanner works with EXModel and Geomagic Design X; for inspection, also with Geomagic Control X and PolyWorks Inspector. The FreeScan software is included with no subscription and no hidden costs.

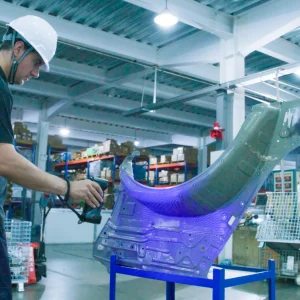

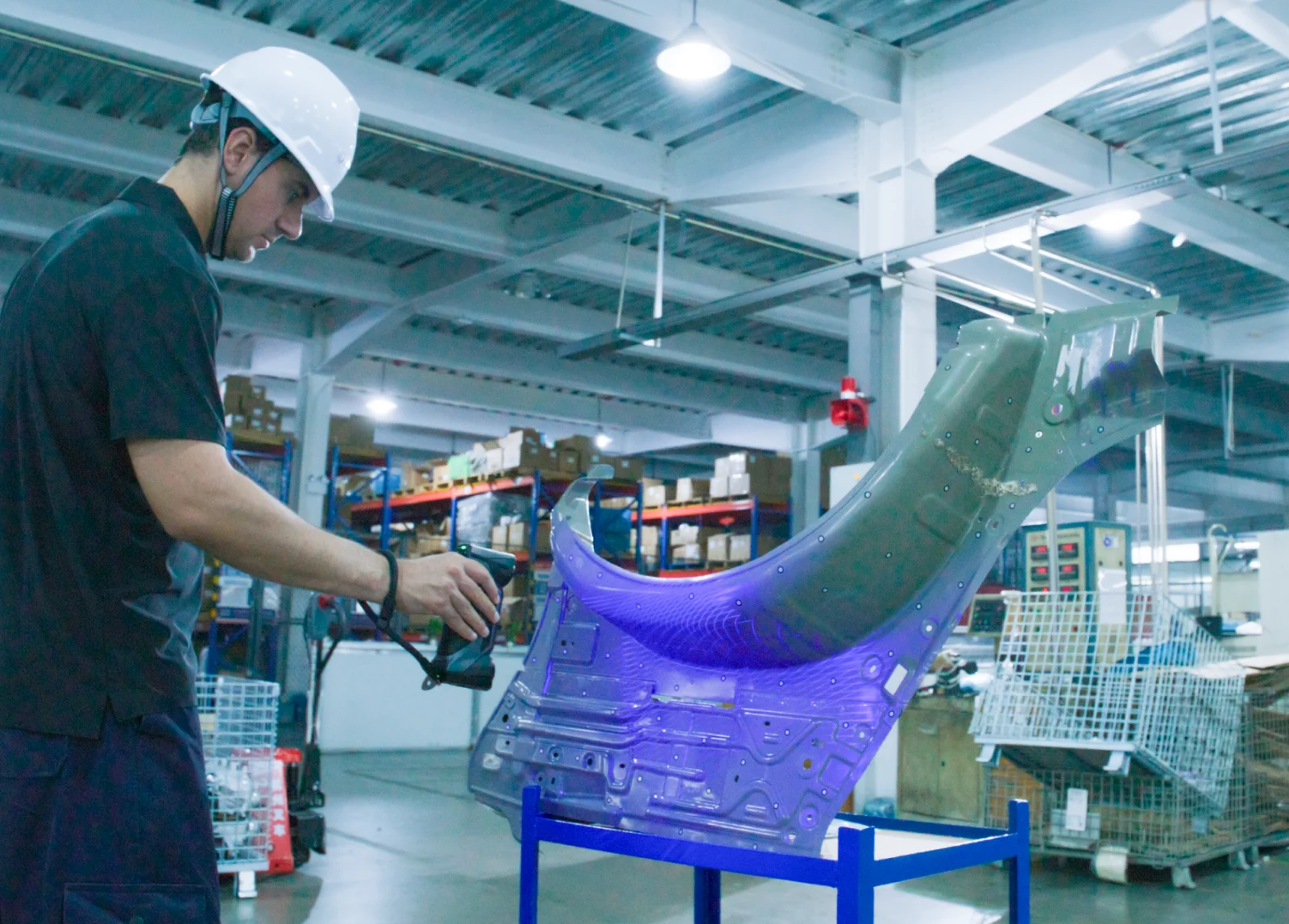

Wireless scanning of a large part on the factory floor with the FreeScan Combo+ Wireless

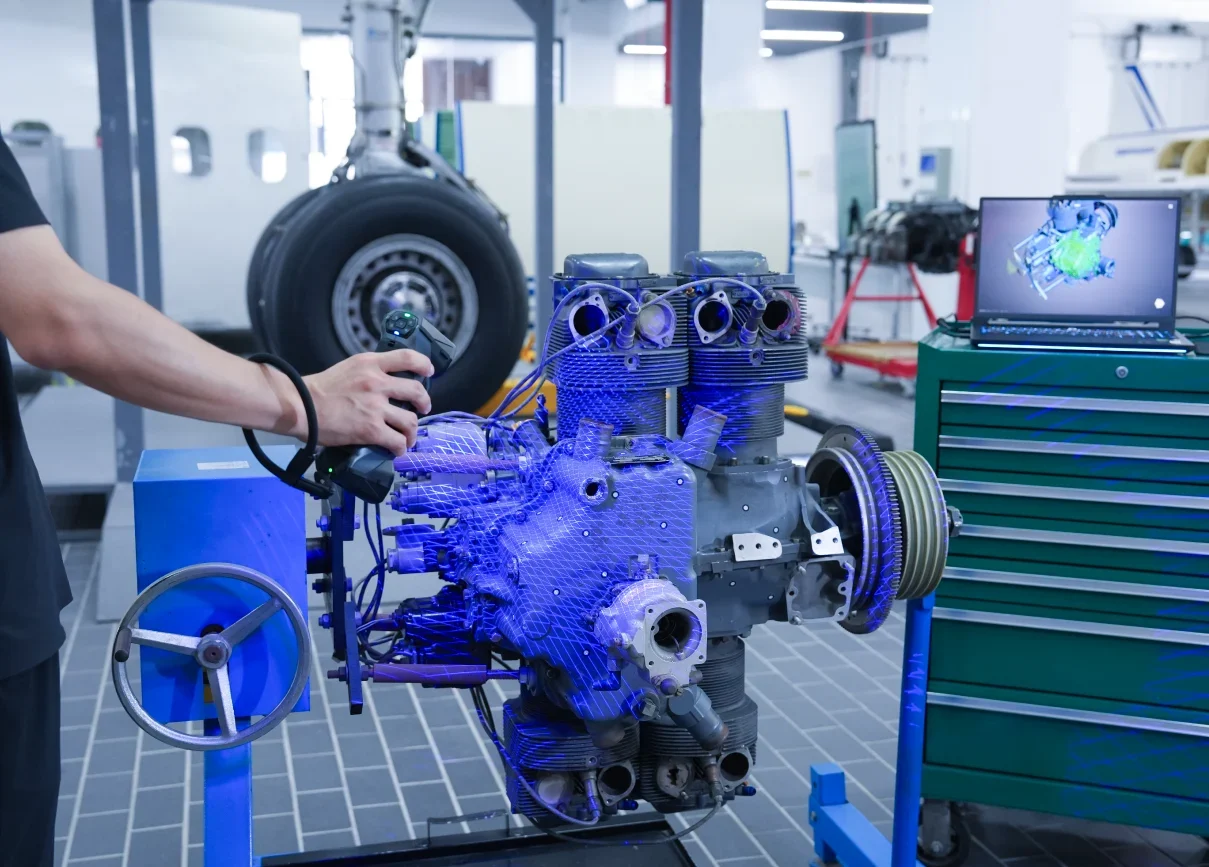

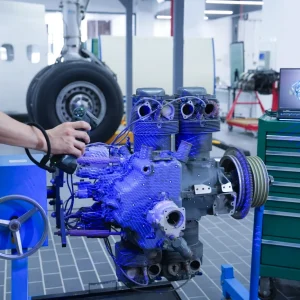

Scanning an engine with blue laser lines using the FreeScan Combo+ Wireless

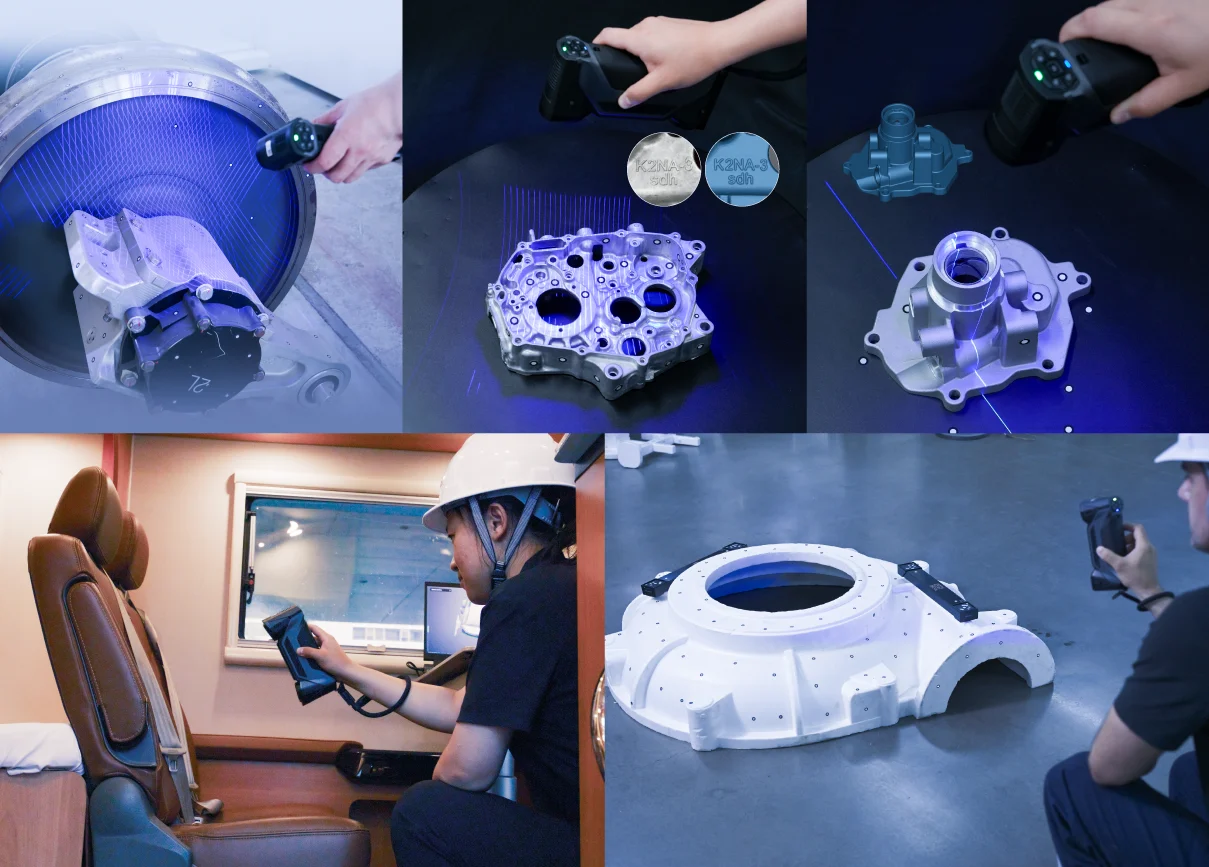

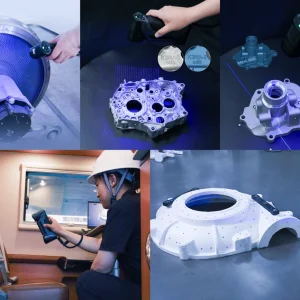

Different scan modes of the FreeScan Combo+ Wireless on various parts

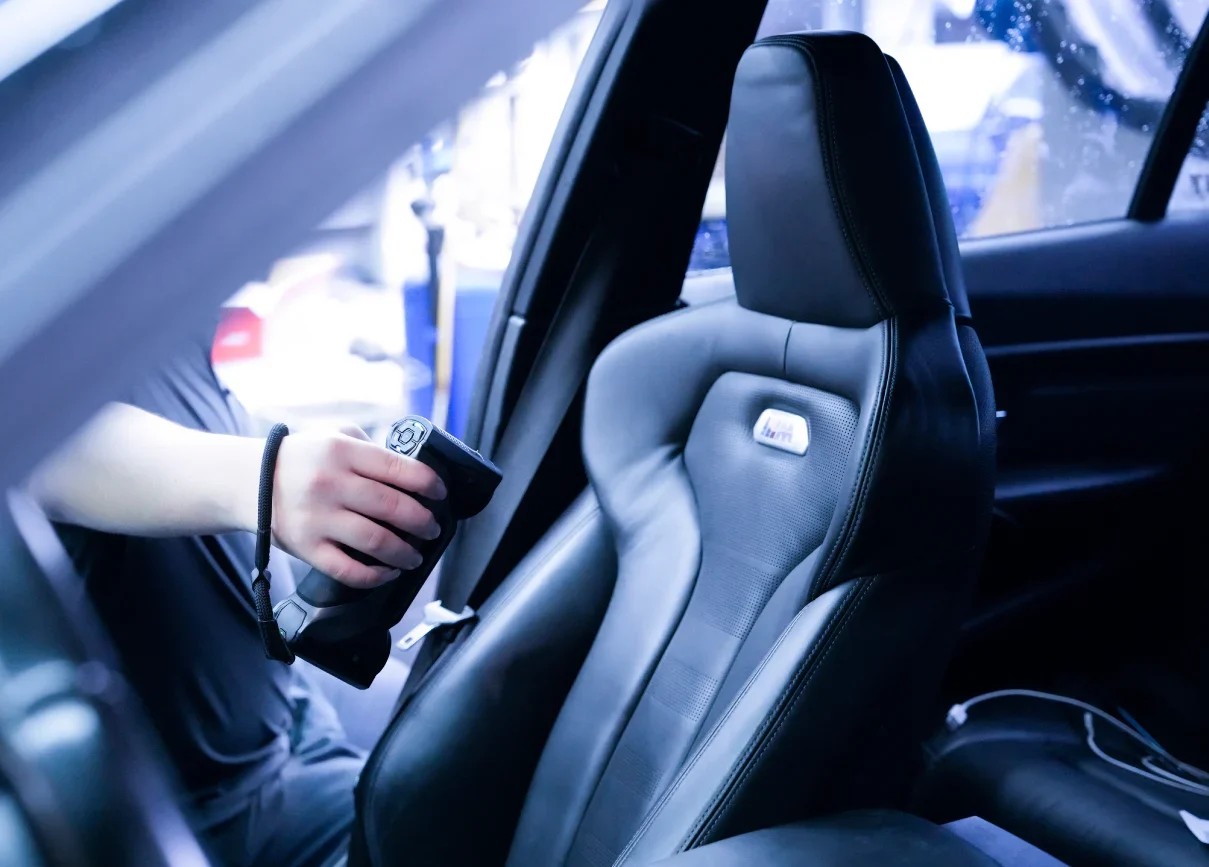

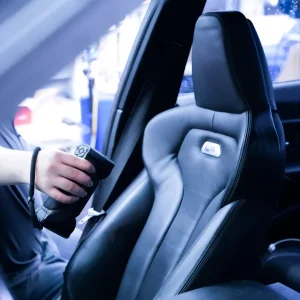

Marker-free infrared scanning of a car seat with the FreeScan Combo+ Wireless

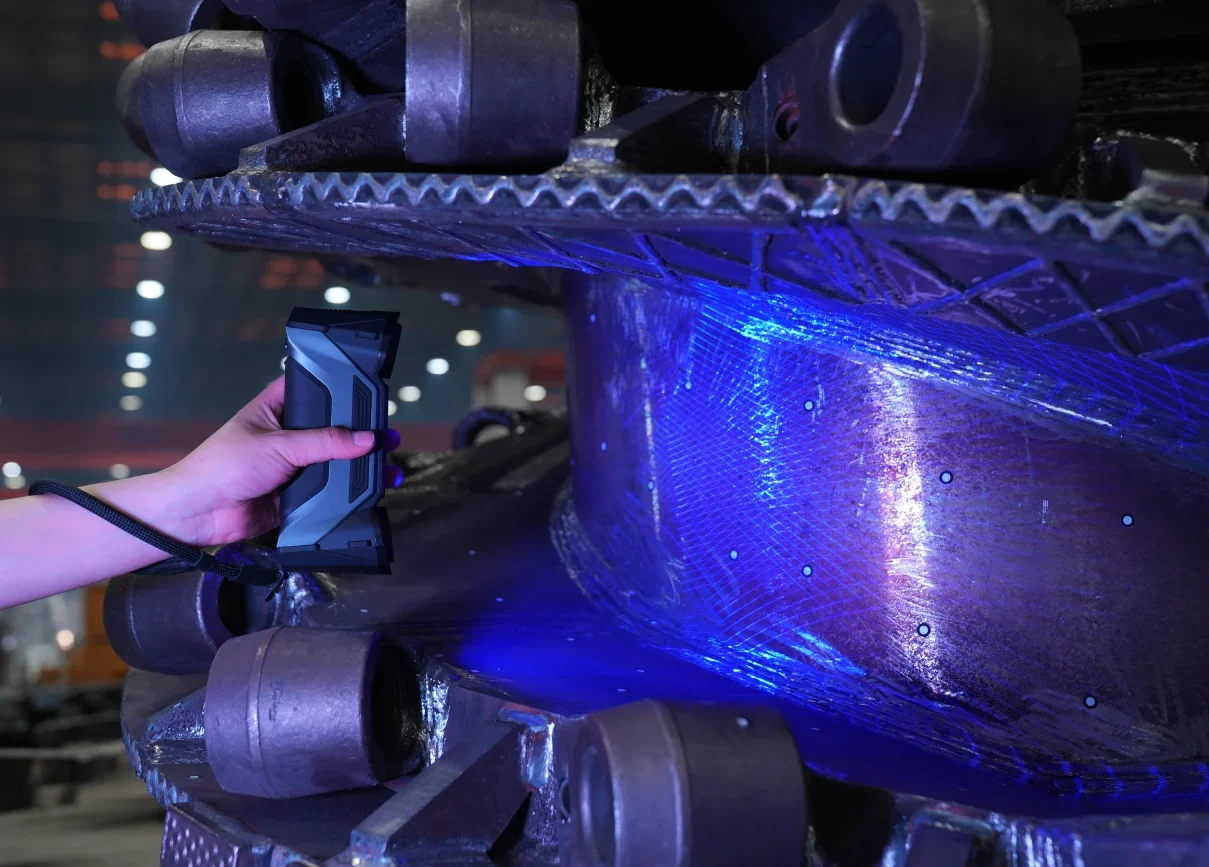

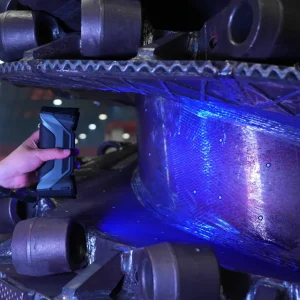

Scanning narrow areas of a large part with the compact FreeScan Combo+ Wireless

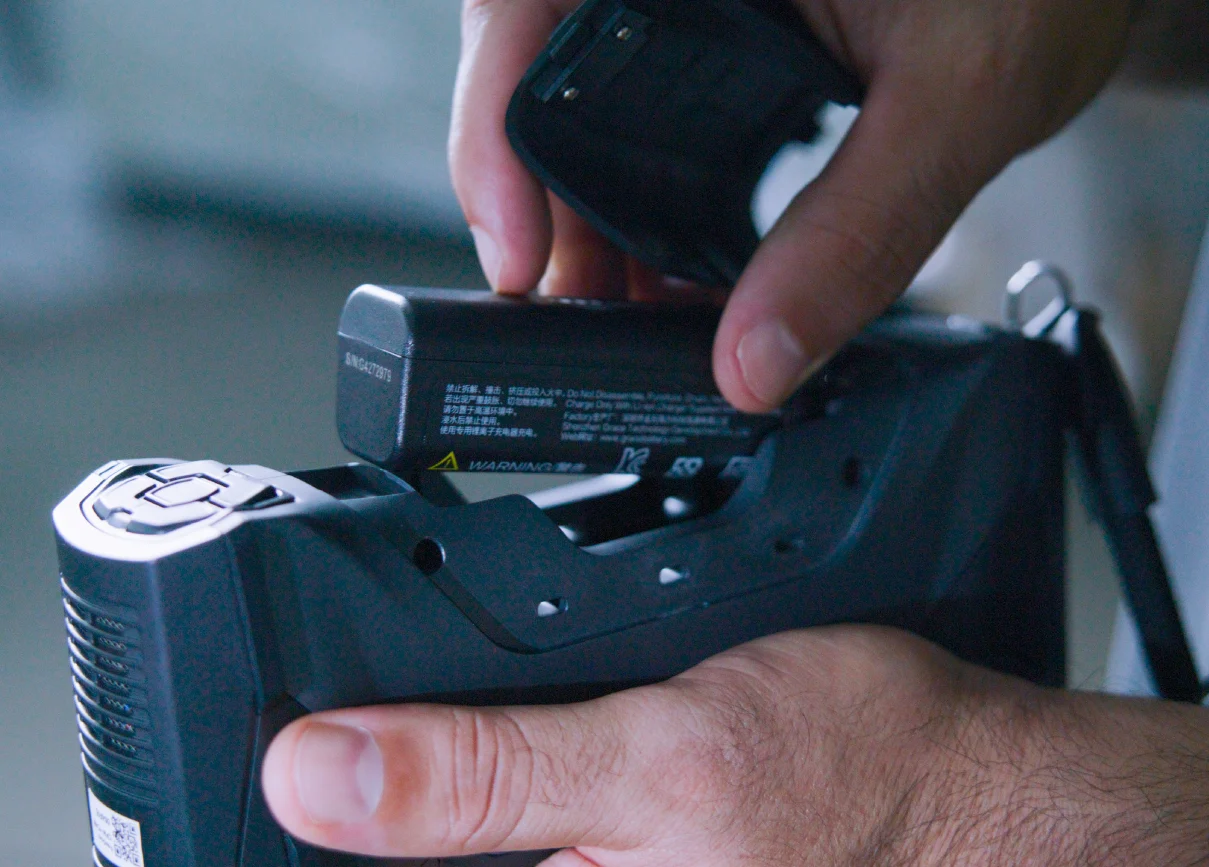

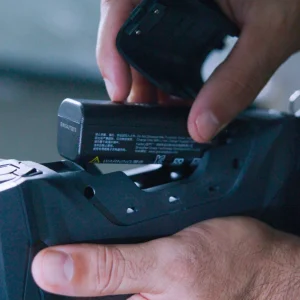

Battery swap on the FreeScan Combo+ Wireless

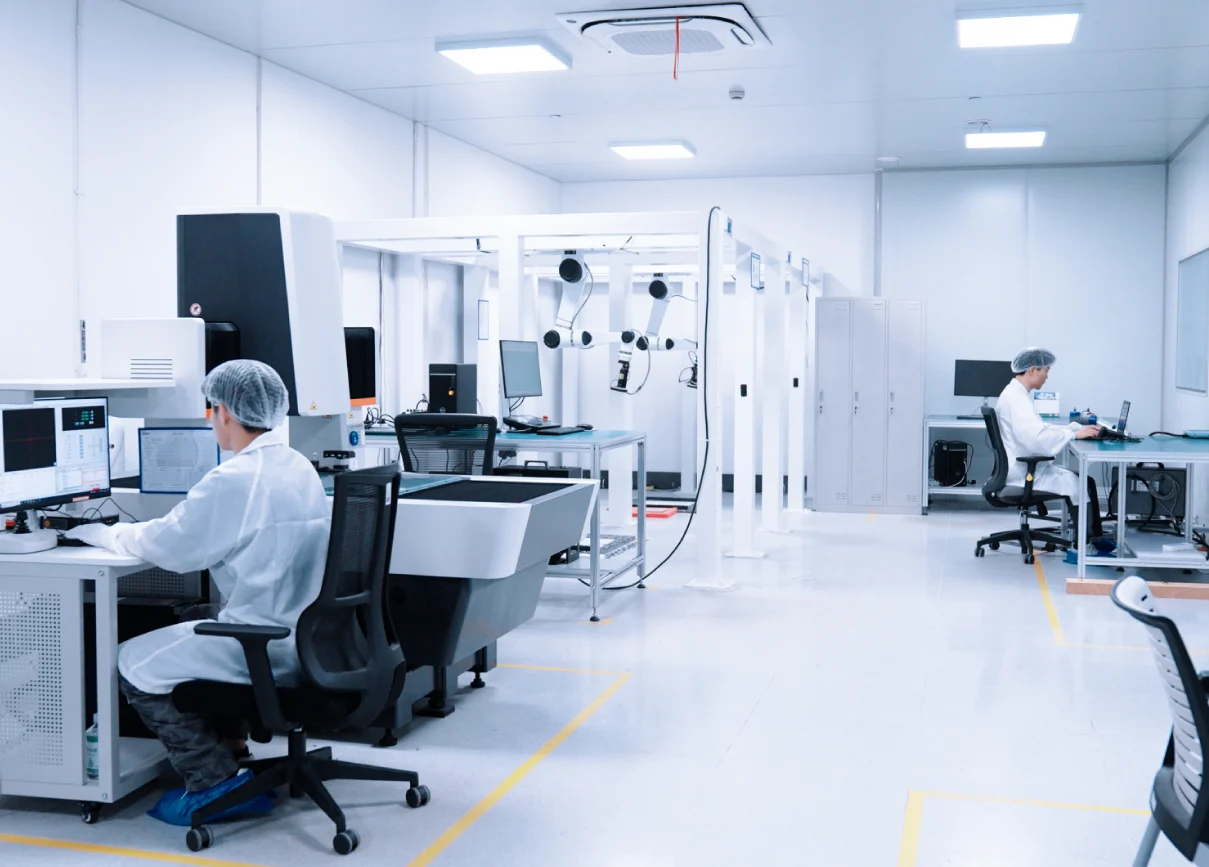

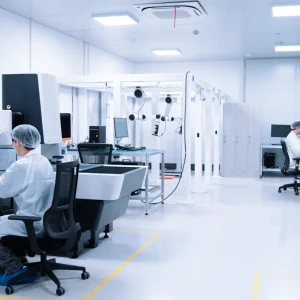

Accredited SHINING 3D accuracy lab

FreeScan Combo+ Wireless Webinar

To help you quickly become productive with your new 3D scanner, we offer our quick start course in the form of a webinar (web-based seminar): In just 120 minutes, you'll understand how the 3D scanning software works.
Webinar Process
  • Introduction to the functionality and operation of the 3D scanning software
  • Overview of the importance of settings
  • The right settings for your perfect 3D scan!
  • Tips & Tricks
  • Troubleshooting – Causes and solutions for the most common problems
Requirements
  • Available, operational PC with Windows 7, 8 or Mac OS X with full administrator rights
  • Internet access
  • Already installed and functional TeamViewer or Microsoft Teams software
TeamViewer
Microsoft Teams

The details of the appointment and the webinar software will be discussed after receiving your order.

Support and Service

  • Professional consultation
  • Custom packages for industrial customers
  • On-site training
  • Service package with free phone and email support
  • Complete solution with 3D printer
  • Component optimization via remote maintenance
  • Process optimizations
  • Customized seminars on-site
  • On-site service

Downloads

FreeScan Combo+ Wireless Product brochure

Technical specifications

Light sourceHybrid: blue laser and infrared
High-speed scan93 laser lines (Combo+ Wireless)
50 laser lines (Combo Wireless)
Detailed scan25 parallel laser lines
Deep pocket scan1 laser line
VPGSupported (no coded markers required)
Accuracy0.02 mm
Volumetric accuracy0.02 mm + 0.03 mm/m
Volumetric accuracy with VPG0.02 mm + 0.015 mm/m
Scan speedup to 9,106,000 points/s (Combo+ Wireless)
up to 7,344,000 points/s (Combo Wireless)
Frame rateup to 180 FPS
Max. field of viewLaser: 580 × 650 mm
IR: 830 × 700 mm
Point distance0.01 – 10 mm
ConnectionWireless (Wi-Fi 7) and wired
Power supplyPower cable, swappable batteries (3 included, up to 2 h per battery), power bank
Weight550 g
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Acceptance testISO 10360 (tested in the ISO/IEC 17025 accredited accuracy lab)

Frequently asked questions

Can the FreeScan Combo+ Wireless scan without markers?

Yes. The scanner has two light sources. The infrared light source can be used to quickly scan feature-rich workpieces without applying markers to the surface.

Does the wireless connection affect accuracy?

No. The wireless connection is used for data transfer only and has no effect on accuracy.

How is accuracy ensured on large objects?

Two validated scale bars are included. Together with the integrated video photogrammetry (VPG), the markers are verified in real time – improving overall accuracy on large objects.

How is the scanner powered?

Via the power cable, the swappable batteries or a power bank.

Can the scanner capture black or reflective objects?

Yes. The blue laser source handles black and reflective surfaces very well.

Is the scanner certified?

Yes. The scanner comes with an inspection report and calibration certificate traceable to ISO 10360. Calibration and verification are carried out in the accredited SHINING 3D Accuracy Lab in accordance with ISO/IEC 17025.
