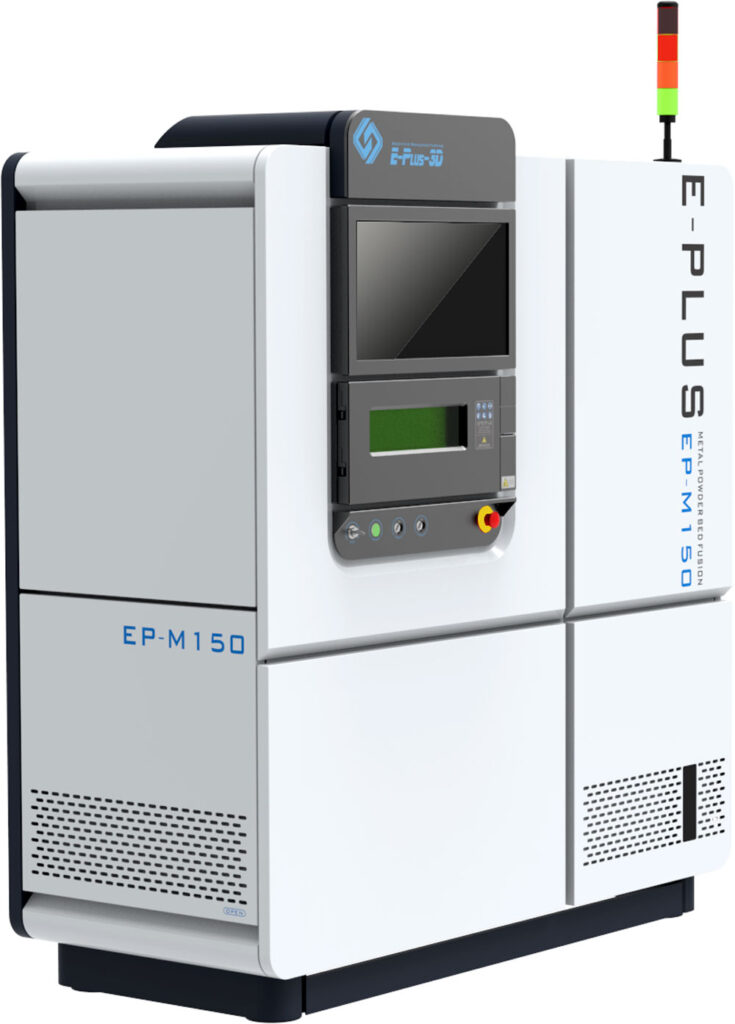

Eplus3D EP-M150
Metal Additive Manufacturing: compact & highly precise
The Eplus3D EP-M150 metal 3D printer operates on the principle of metal powder bed fusion. To meet the demands of highly accurate and efficient production, the system can optionally be configured with one or two lasers, as well as with 200 or 500 W systems. Thanks to its compatibility with a wide range of metal powder materials such as titanium, chromium, aluminum, or nickel-based alloys, as well as stainless or tool steels, a large number of applications can be realized. Due to its compact size and flexibility, the EP-M150 is ideally suited for research and development, small-scale production, or training purposes.
Medicine
Automotive Industry
Aerospace
Trade Goods
Energy
Architecture
Prototypes
High-precision print quality & high efficiency
The small laser spot and reduced layer thickness guarantee improved precision printing quality and high-quality parts. The intelligent powder coating method and faster scanning speed ensure fast printing. Precise oxygen control and unique scanning technology guarantee high-quality printing.
5 – 35 cm³/h
Build Speed
20 μm – 100 μm
Layer Thickness
Ø 153 x 120 mm³
Print Volume
High precision
High laser beam quality, small laser spot, and continuous and homogeneous laser beam quality at every position in the build space.
High performance
Achievable part density > 99.95%, volatility of mechanical properties < 5%, and calibration accuracy in the laser overlap area with dual lasers < 30μm.
High efficiency
Layer thicknesses of up to 100 μm are possible, and thanks to the latest technology, the output rate can be increased by 230 ‒ 270% through dual lasers and thick layers.
Openness
High repeatability and consistent parameter sets across multiple machines in the EP-M printer family. Compatible with multiple materials. The system can process different metal powders without adjusting the optical path.
User-friendly system
Ergonomic machine design. Thanks to the one-click printing function, the machine is ready to print in no time. The system can be prepared in just a few minutes.
Safety
Fault-tolerant machine and software design. With appropriate filters and additional safety factors, operator safety is increased. Real-time monitoring of the process chamber and environment ensures a stable process and high reproducibility.
Eplus3D Software Solutions
EP-Hatch Print Process Planning Software
EP-Hatch is a process planning software developed by Eplus3D specifically for its additive manufacturing systems. It can optimize the print path based on the already sliced and output data and adjust the scan path separately for contour, interior, top, and bottom surfaces of the part. Additionally, EP-Hatch comes standard with a variety of advanced scan strategies such as long straight lines, short straight lines, and chessboard patterns, enabling optimal process settings for specific materials.
Eplus3D Control Software
The control software developed by Eplus3D represents a powerful control system. With an open and user-friendly interface, it allows users to easily manage their digital files from build preparation and part positioning and provides the ability to monitor during the build process along with reporting. The powerful control and operating system supports not only the printing of mature materials but also the development of new materials.
Eplus3D EP-M150Support and Service
- Professional consultation
- Sample print creation
- Customized packages for industrial clients
- On-site training
- Customized service packages
- Complete solution with closed depowdering station
- Component optimization via remote maintenance
- Material testing
- Process optimizations
- Custom seminars on-site
- On-site service
Downloads
Technical Specifications
Maschinenmodell | EP-M150 |
Bauraum | Ø 153 x120 mm³ |
Optisches System | Faserlaser, 200/500 W (Single- oder Duallaser) |
Laserspotgröße | 40 - 60 μm |
Max. Scangeschwindigkeit | 8 m/s |
Baugeschwindigkeit | Singlelaser: 5 – 20 cm³/h Duallaser: 8 – 35 cm³/h |
Schichtdicke | 200 W Laser: 20 μm - 50 μm 500 W Laser: 20 μm - 100 μm |
Genauigkeit | Bis 100 mm Baugröße: < ±0,1 mm Ab 100 mm Baugröße: ± 0,1 % |
Material | Titan-, Aluminium-, Nickelbasis, Cobalt-Chromlegierungen sowie Werkzeug- und Edelstähle, etc. |
Stromversorgung | 220 V, 50-60 Hz, 4.2 kW, 14 A (Duallaser : 5.8 KW, 19 A) |
Gasversorgung | Ar/N2 |
Sauerstoffgehalt in Prozesskammer | < 100 ppm |
Dimensionen (L x B x H) | 1750 x 810 x 2190 mm³ |
Gewicht | 900Kg |
Software | EP-Hatch, EP Control; weitere auf Anfrage |
Format Eingangsdaten | STL oder andere konvertierbare Formate |
