Eplus3D EP-S600
SLS printer specialized in orthotics
By using Polymer Powder Bed Fusion (PPBF) with a build cylinder of up to 420 x 380 x 600 mm, the EP-S600 ensures a combination of high printing efficiency, fast scanning speed, large build volume, and low operating costs. The EP-S600 fully meets the customization and production requirements of the rehabilitation and medical industry, enabling customized production.
Medicine
Automotive Industry
Aerospace
Trade Goods
Energy
Architecture
Prototypes
High Performance and Efficiency

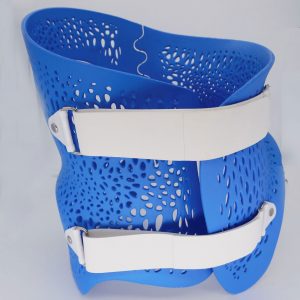

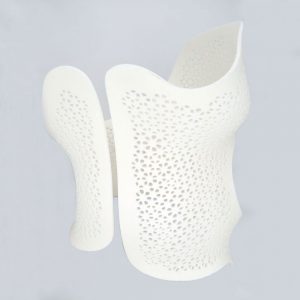

The average print time of a single orthosis is 11 hours, so one machine can produce 400–450 orthoses per year. The advanced and fast optical system fits perfectly with the 55W CO2 laser and achieves a scanning speed of 7.8 m/s. The high material reuse rate and low waste amount effectively reduce material consumption.
11 hours
Print time of an orthosis
0,1 – 0,3 mm
Layer Thickness
420 x 380 x 600 mm
Print Volume
Advanced optical system
The advanced and fast optical system fits perfectly with the 55W CO2 laser and achieves a scanning speed of 7.8 m/s.
High Material Reuse Rate
High material reuse rate
Open Print Parameters
Open Print Parameters Enable the Development of New Materials.
Large Volume Powder Dispenser
One fill is enough for the entire cylinder print.
Removable protective windows
Removable optical protective windows facilitate daily maintenance.
Intelligent
A visualized printing process and automatically generated print reports enable tracking of the printing process.
User-Friendly
Ability to print with just one click and convenient remote control via smartphone.
Dust-free process
The process of removal and powder processing takes place in the cleaning platform.
Reliable filter
The gas in the build chamber is safely discharged through multi-stage filtration and adsorption.
Eplus3D Software Solutions
EP-Hatch Print Process Planning Software
EP-Hatch is a process planning software developed by Eplus3D specifically for its additive manufacturing systems. It can optimize the print path based on the already sliced and output data and adjust the scan path separately for contour, interior, top, and bottom surfaces of the part. Additionally, EP-Hatch comes standard with a variety of advanced scan strategies such as long straight lines, short straight lines, and chessboard patterns, enabling optimal process settings for specific materials.
Eplus3D Control Software
The control software developed by Eplus3D represents a powerful control system. With an open and user-friendly interface, it allows users to easily manage their digital files from build preparation and part positioning and provides the ability to monitor during the build process along with reporting. The powerful control and operating system supports not only the printing of mature materials but also the development of new materials.
Eplus3D EP-S600Support and Service
- Professional consultation
- Sample print creation
- Customized packages for industrial clients
- On-site training
- Customized service packages
- Complete solution with closed depowdering station
- Component optimization via remote maintenance
- Material testing
- Process optimizations
- Custom seminars on-site
- On-site service
Downloads
Technical Specifications
| Maschinenmodell | EP-S600 |
| Größe der Baukammer | 420 x 380 x 600 mm (L×B×H) |
| Gerätedimension | 2480 x 1415 x 2160 mm (L×B×H) |
| Materialien | PP und dessen Verbundwerkstoffe |
| Maschinengewicht | 1.600 kg |
| Scan-Geschwindigkeit | Max. 7.8 m/s |
| Max. Kammertemperatur | 260 °C 220 |
| Stromversorgung | 220 V, 1/N/PE, 50/60 Hz |
| Schichtdicke | 0,1 – 0,3 mm |
| Laserleistung | 55 W CO2 Laser, 120 W |
| Betriebssystemunterstützung | Windows 7/ Windows 10 |
| Thermische Feldsteuerung | Unabhängiges Vierzonen-Temperaturregelungssystem |
| Temperaturregelung | Kontinuierliche Echtzeitüberwachung der Bautemperatur |
| Steuersoftware | Eplus3D Drucksoftware |
| Ausgabedatenformat | STL, OBJ, STEP oder andere konvertierbare Datei |
