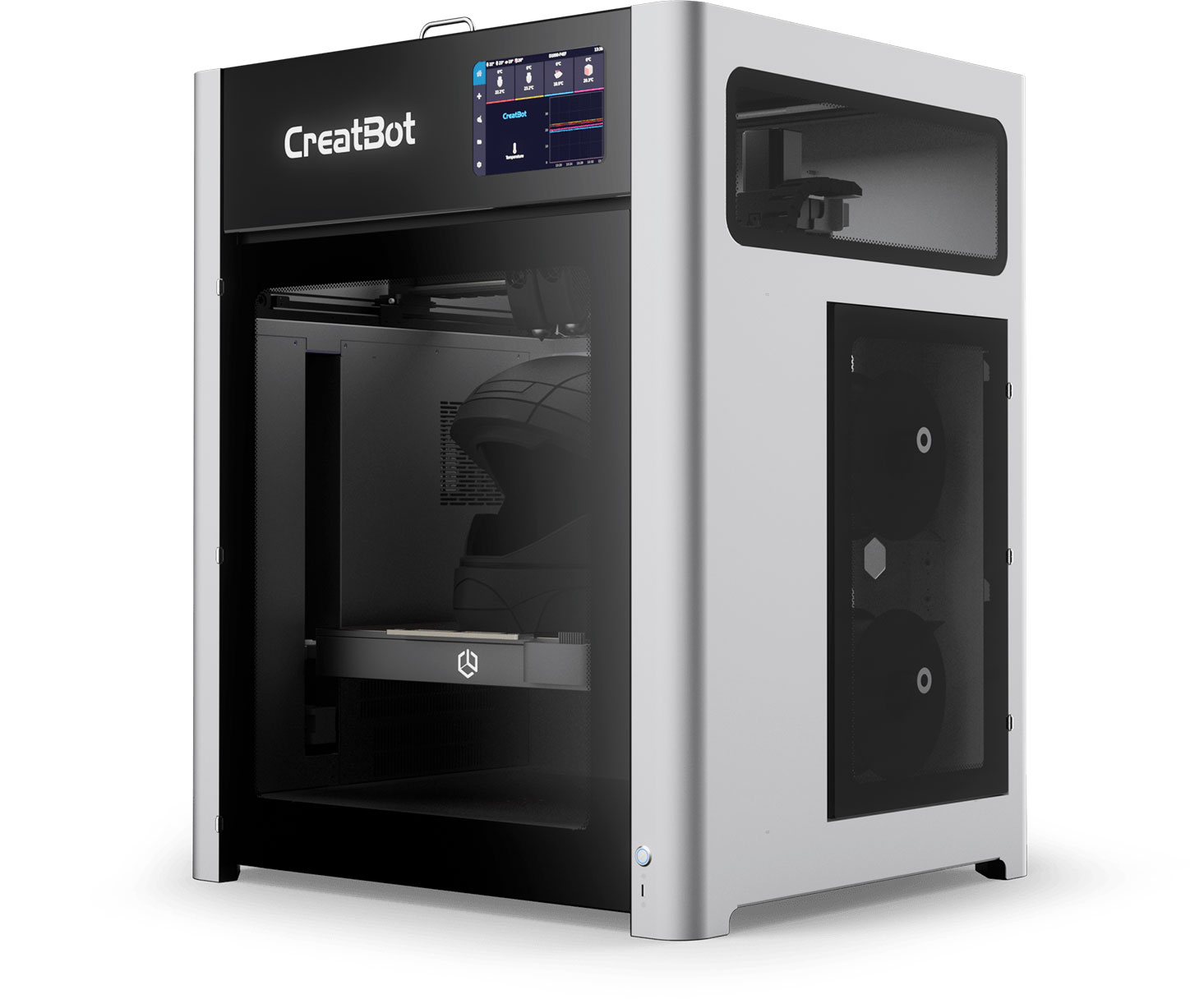

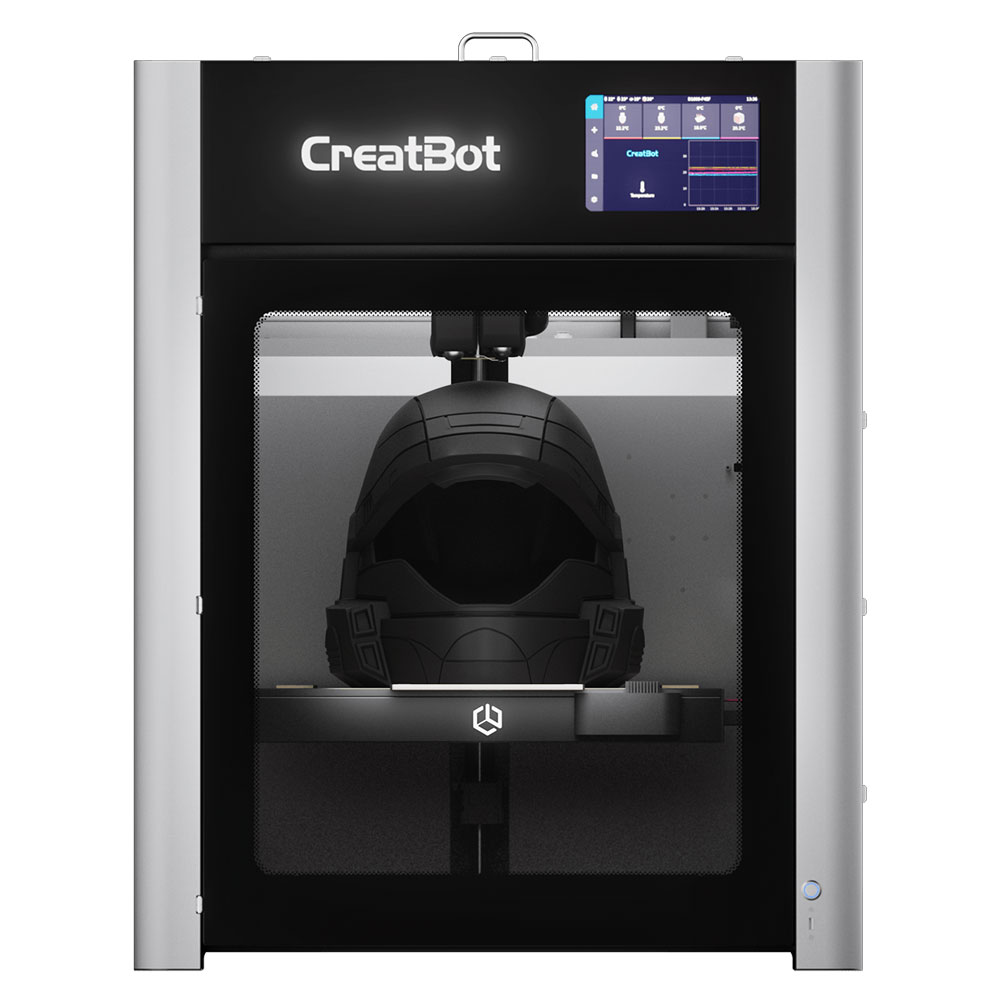

Creatbot D400 HS
Champion DNA: professional high-speed 3D printer.
Hochgeschwindigkeits-3D-Drucker mit 420 × 400 × 420 mm Bauraum, entwickelt auf der bewährten Plattform des D600 Pro3 HS – für Unternehmen und Profis, die technische Bauteile und funktionale Prototypen zuverlässig und rund um die Uhr fertigen müssen.
Aerospace
Architecture
Automotive Industry
Consumer Goods
Education
Medical
unique high speed
The D400 HS is built on the deeply refined Klipper development of the D600 Pro3 HS and uses the same high-flow hotend with a record-setting 90 mm³/s output. With a stable print speed of 600 mm/s, it even reaches twice the speed of its bigger sibling – with precise, repeatable quality. Ideal for compact prototypes, production parts, and demanding technical materials in a desktop format.
0.05 mm
Layer Resolution
up to 420°C
Extruder Temperature
up to 600 mm/s
Print Speed
420 x 400 x 420 mm
Print Volume

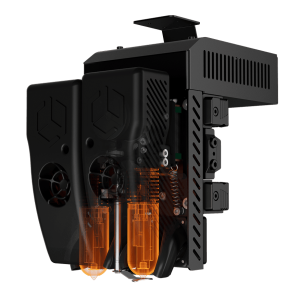

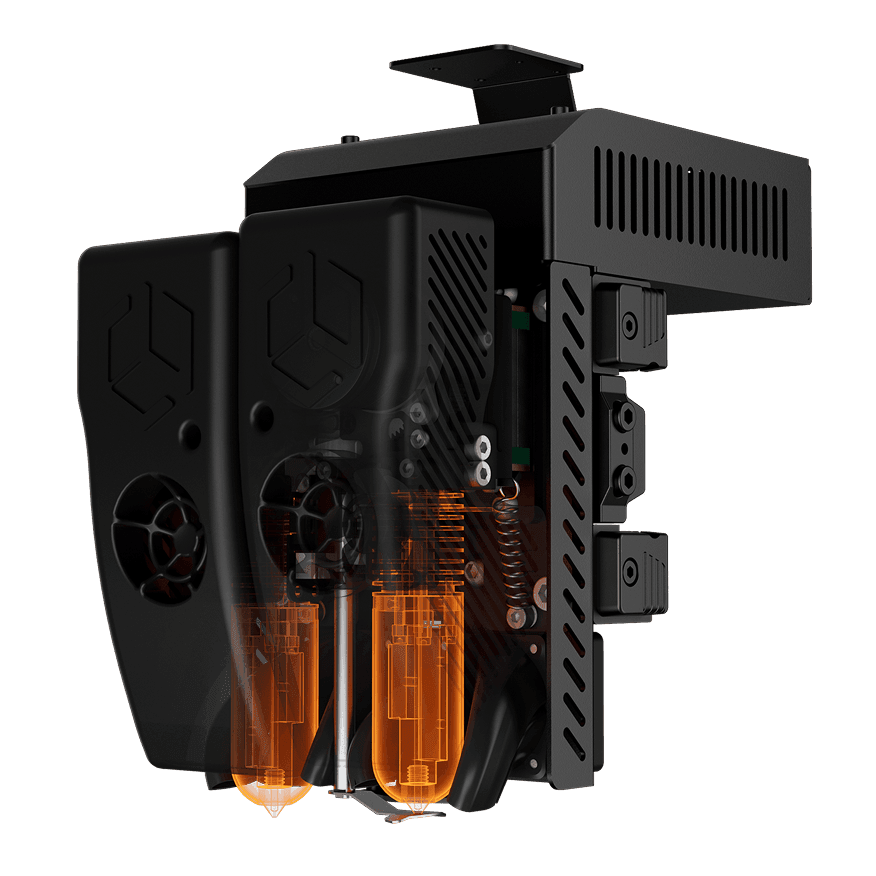

Automatic Dual Extruder (420 °C)
The intelligent, lightweight dual-extruder kit reaches 420 °C and allows fast nozzle changes. Thanks to improved dual-nozzle shutter technology and automatic HD-camera offset calibration (0.02 mm accuracy), ABS or ASA prototypes, PET-CF and UltraPA-CF can be printed at maximum speed with ideal support materials. Low maintenance and cost-efficient.

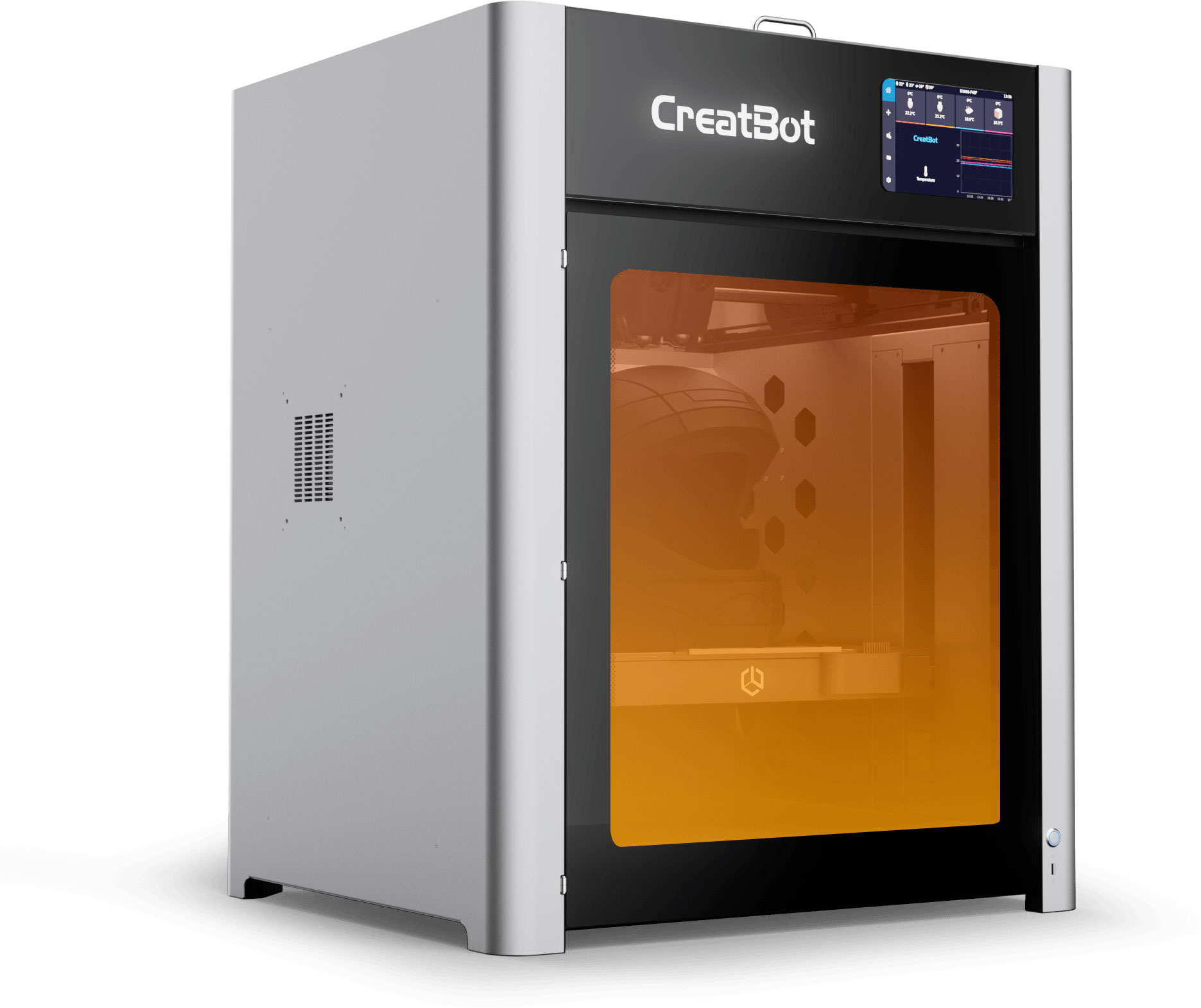

Actively Heated Chamber (70 °C)
The dual-layer insulated heating chamber reduces thermal stress, improves layer adhesion, and prevents cracking or warping in technical plastics. The intelligent chamber-heating algorithm compensates in real time for thermally induced machine deformation – for consistently repeatable results even with demanding materials.
Large Magnetic Platform
The exclusive magnetic platform is heat-resistant above 100 °C, never demagnetizes, and is easy to remove. Models release quickly, and the underside stays flat and clean.
Eddy Current Bed Leveling (0.001 mm)
The non-contact eddy current leveling system calibrates the build platform in 60 seconds with a scanning accuracy of 0.001 mm. Combined with the independent quad Z-axis, every corner of the platform is individually balanced.

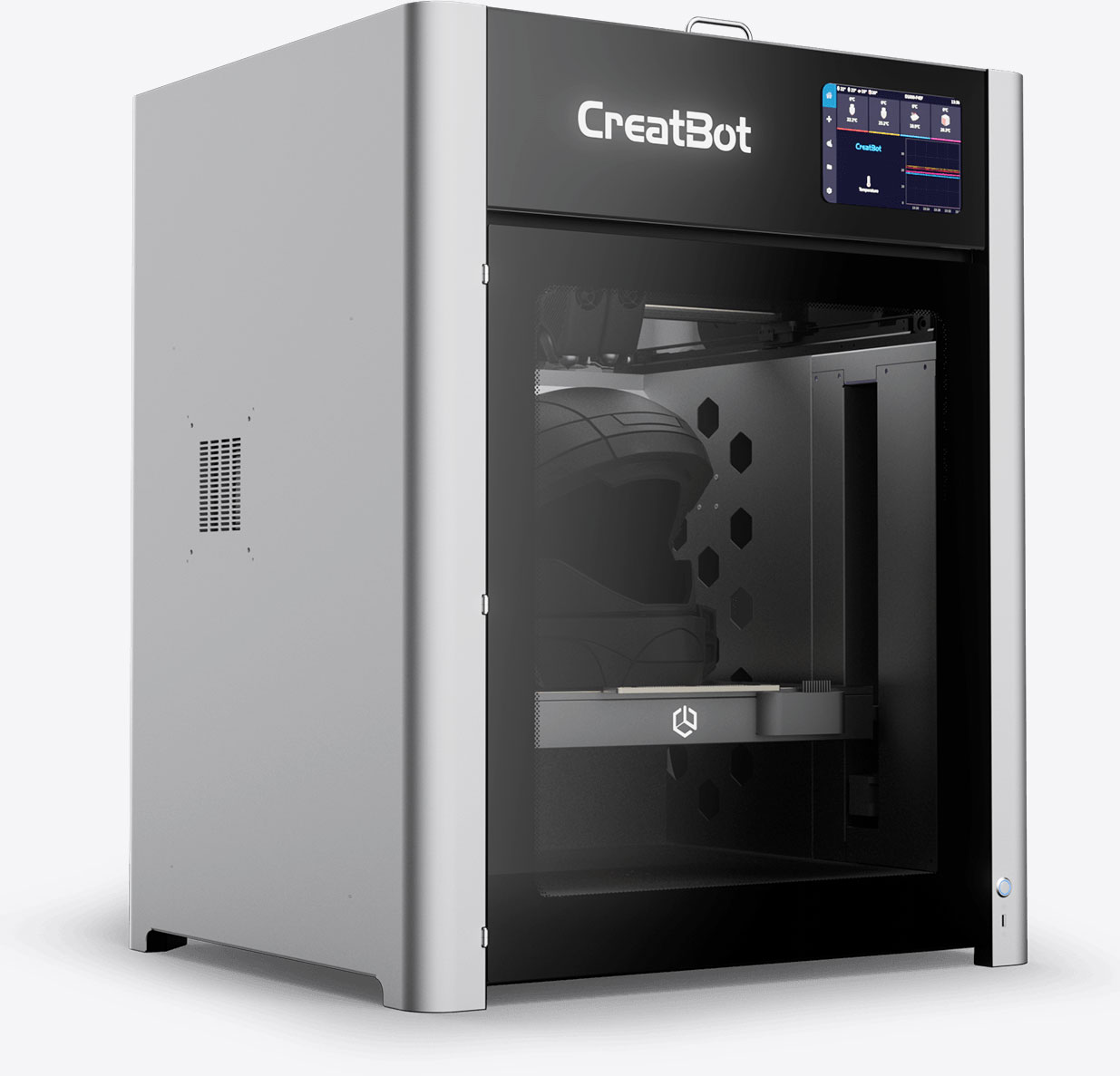

Professional. Compact.
Built for the desktop.
With a 420 × 400 × 420 mm build volume, the proven technology of the D600 Pro3 HS, and over 30 detail improvements, the D400 HS brings professional large-format performance to a desktop format. The robust steel chassis minimizes deformation, while servo motors and linear rails guarantee precise movement. From functional test parts to high-temperature nylon components – the D400 HS reliably produces 24/7 and delivers the performance small and medium-sized businesses worldwide rely on.
Creatbot D400 HS Webinar
To help you get up and running with your new 3D printer quickly, we offer you our quick start course in the form of a webinar (web-based seminar): After 120 minutes, you will understand how to use the 3D printing software.
Webinar Agenda
- Introduction to the functionality and operation of the 3D printing software
- Overview of the importance of settings
- The right settings for your perfect 3D print!
- Tips & Tricks
- Troubleshooting – Causes and solutions for common problems
Requirements
- Existing, ready-to-use PC with Windows 7, 8, or Mac OS X with full administrator rights
- Internet access
- Pre-installed and functional TeamViewer or Microsoft Teams software
The details of the appointment and the webinar software will be arranged after receiving your order.
Support and Service
- Professional consulting
- Sample print creation
- Custom packages for industrial clients
- On-site training
- Service package with free phone and email support
- Complete solution with wash station
- Component optimization via remote maintenance
- Material testing
- Process optimizations
- Custom seminars on-site
- On-site service
Downloads
Technische Daten
| Drucktechnologie | FDM |
| Bauraum | Einzel-Extrusion: 420 × 400 × 420 mm / Doppel-Extrusion: 365 × 400 × 420 mm |
| Anzahl der Düsen | 2 |
| Automatisch hebende Extruder | Ja |
| Minimale Schichthöhe | 0,05 mm |
| Filamentdurchmesser | 1,75 mm |
| Kompatible Filamente | PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, PA-GF, PA-CF, PA-ABS, PC-ABS, PP-GF, PP-CF u. a. |
| Düsendurchmesser | 0,6 mm (0,3 / 0,4 / 0,6 / 0,8 / 1,0 mm optional) |
| Druckdateitypen | GCODE, STL, 3MF, OBJ, AMF, STP, STEP |
| Max. Düsentemperatur | 420 °C |
| Max. Heizbett-Temperatur | 120 °C |
| Max. Kammertemperatur | 70 °C |
| Max. Druckgeschwindigkeit | 600 mm/s |
| Förderrate | 90 mm³/s |
| Stromversorgung | 100–120 V / 210–240 V, 50–60 Hz |
| Nennleistung | 100–120 V: 2.700 W / 210–240 V: 3.200 W |
| Bildschirm | 7-Zoll-Touchscreen |
| Konnektivität | USB / U-Disk / WiFi / LAN |
| Softwarepaket | CreatWare, OrcaSlicer, Cura, Simplify3D, PrusaSlicer u. a. |
| Unterstützte Dateitypen | STL, OBJ, AMF, 3MF, STP, STEP |
| Betriebssysteme | Windows (alle) / macOS |

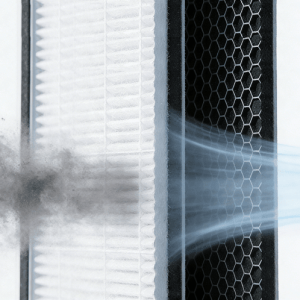

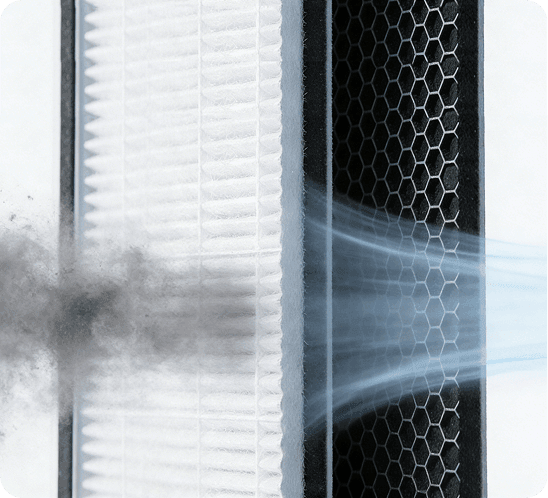

| Luftfilter | HEPA + Aktivkohle |
| Filament-Erkennung | Druck anhalten |
| Firmware | Klipper (Hochgeschwindigkeit) |

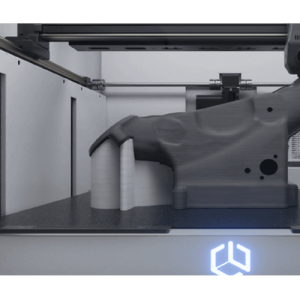

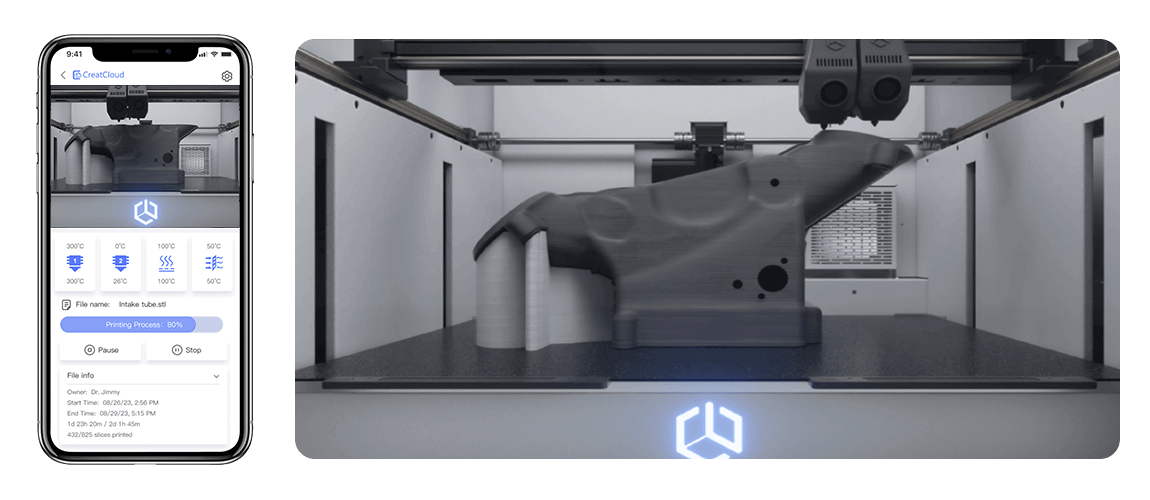

| Kamera-Steuerung | Kamera-Fernüberwachung |

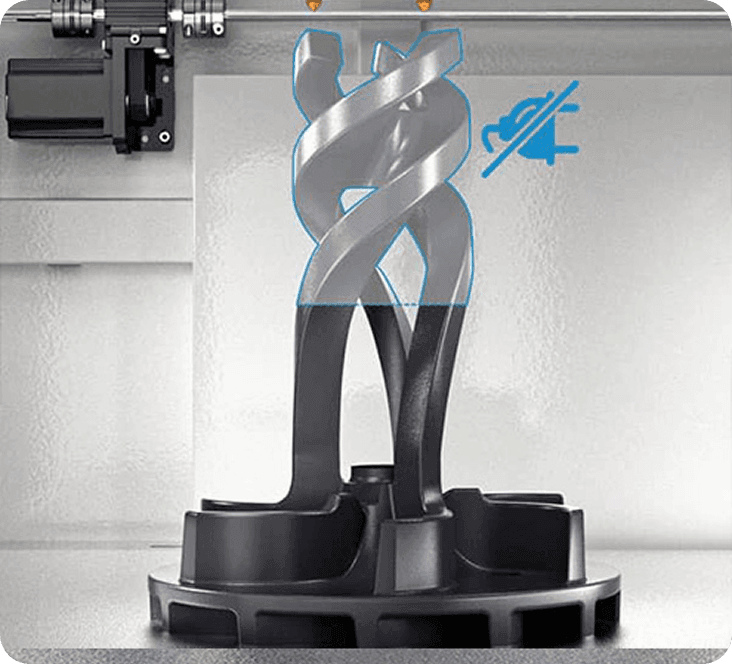

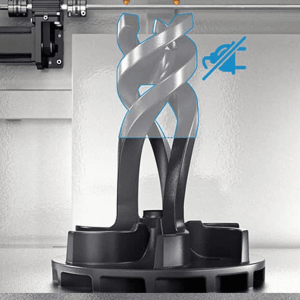

| Doppeldüsen-Druckfortsetzung | Ja |
| Bettnivellierung | Wirbelstrom-Nivellierung |
| XY-Offset-Technologie | HD-Kamera-Doppeldüsen-Offset |
| Z-Offset-Technologie | Doppelelektrooptischer Sensor |
| Düsenverschluss-Technologie | Doppeldüsen-Verschluss |
| Türöffnungs-Erkennung | Ja |
| Kammer-Isolierung | Interne Isolationswolle |

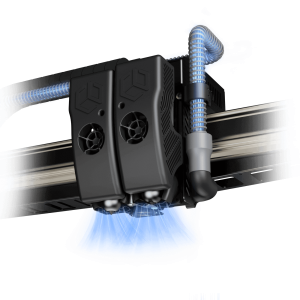

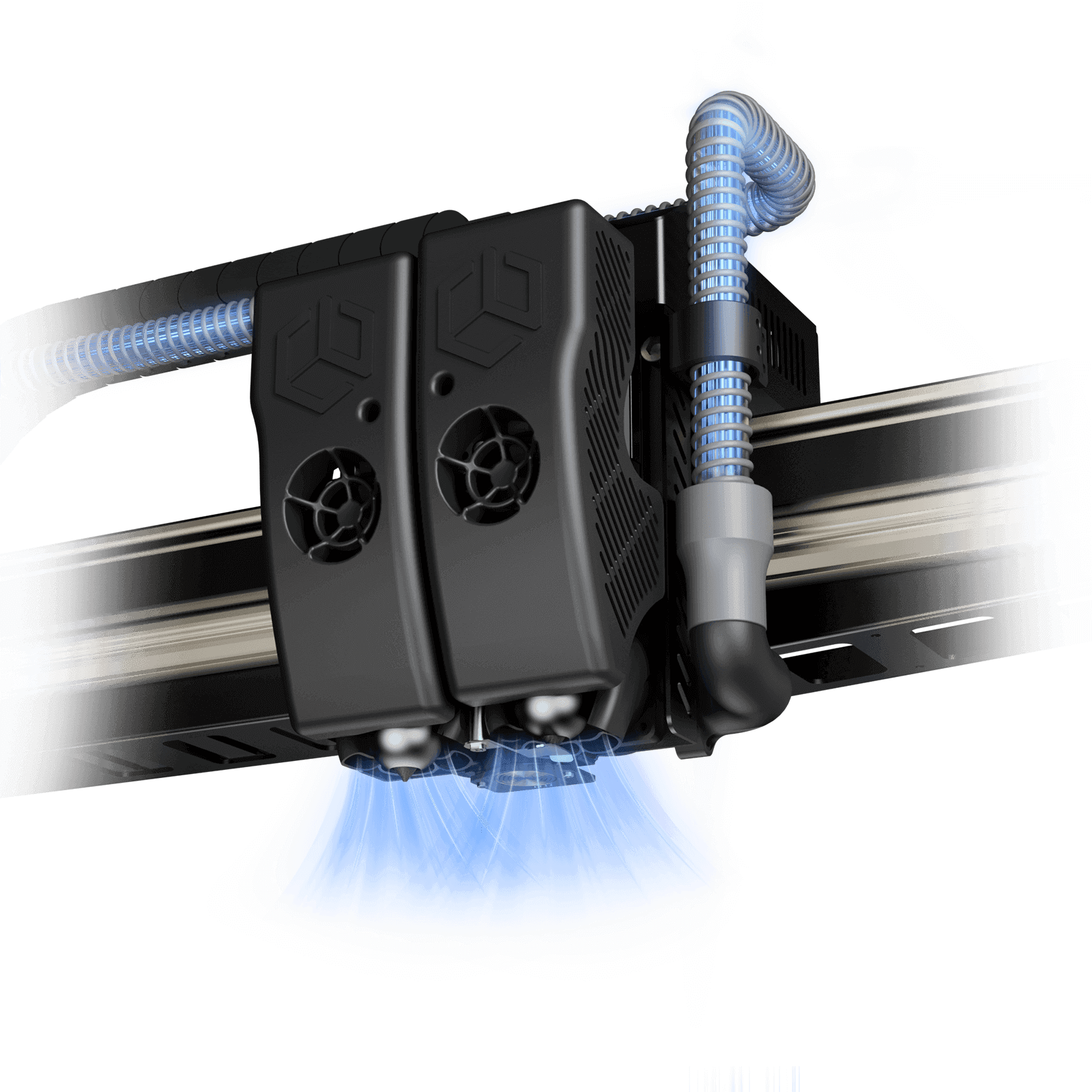

| Externe Luftkühlung | Ja |
| Bauplatte | Flugzeugaluminiumplatte + abnehmbares Magnetblech |
| Bauplatten-Nivellierung | Automatisch |
| Extruder | Intelligente Doppelextruder |
| XY-Positionsgenauigkeit | 0,00375 mm |
| Z-Positionsgenauigkeit | 0,00156 mm |
| Z-Achsen-Struktur | Unabhängige Vierfach-Z-Achse |
| Produktmaße & Gewicht | 785 × 705 × 1.020 mm / 110 kg |
| Verpackungsmaße & Gewicht | 860 × 790 × 1.220 mm / 150 kg |
| Produktmaße & Gewicht | 1.150 × 950 × 1.250 mm / 250 kg |
| Verpackungsmaße & Gewicht | 1.175 × 1.015 × 1.405 mm / 290 kg |
