Hexagon Designer
The connection between design and production.
DESIGNER was specifically developed for smarter manufacturing and impresses with a variety of solid, surface, and sheet metal modeling functions, the creation of 2D drawings, design automation using macros and scripting, as well as integration with Hexagon’s CAM software and reverse engineering capabilities.
Versatile application for smarter manufacturing
DESIGNER is Hexagon’s CAD application for smarter manufacturing. The solution stands out with a variety of solid, surface, and sheet metal modeling functions, the creation of 2D drawings, design automation using macros and scripting, as well as integration with Hexagon’s CAM software and reverse engineering capabilities.
Create

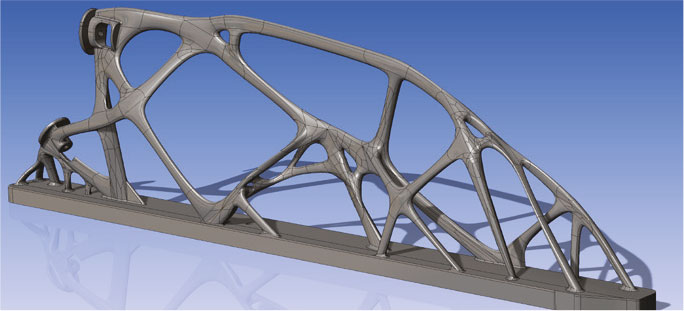

DESIGNER provides advanced tools for CAD design – including specialized features for reverse engineering, sheet metal processing, and additive manufacturing.
Automate
DESIGNER supports automation and customization through macros and scripts – for greater efficiency in complex manufacturing workflows.
Collaborate

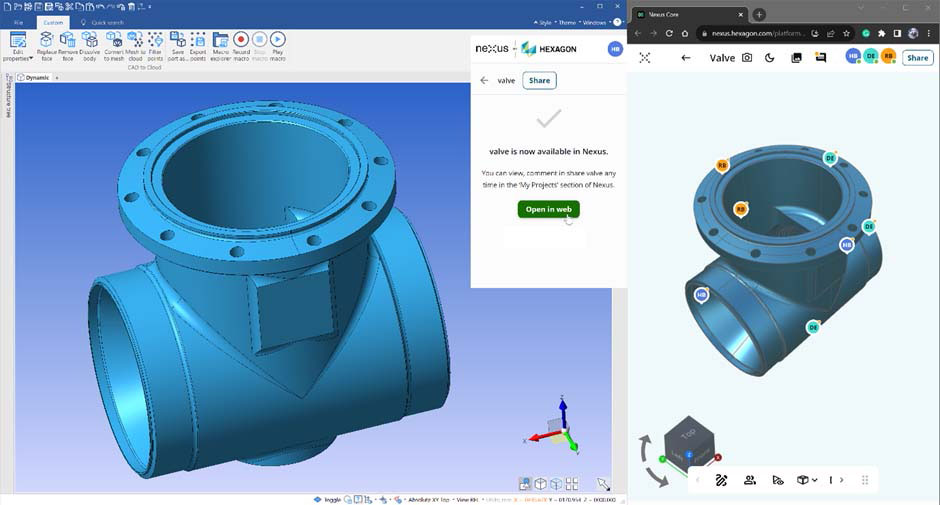

DESIGNER is connected to the Nexus 3D Whiteboard and enables collaborative 3D design reviews in the cloud.
Advanced CAD for manufacturing
Import and optimize geometries – with CAD tools specifically developed for CAM preparation. This creates manufacturing-ready setups that seamlessly connect design intent with practical execution.
Optimized CAD for 3D printing

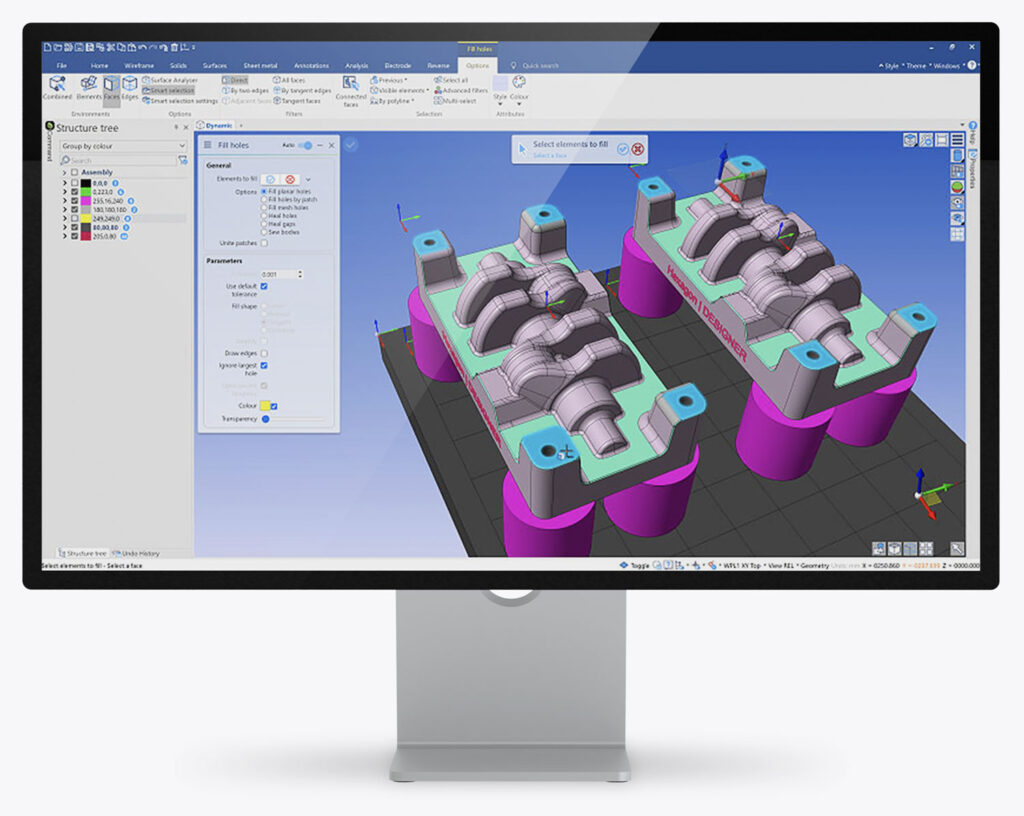

Effortlessly prepare parts for 3D printing – with intuitive tools for geometry optimization, mesh repair, and support structure creation. For precise results with minimal effort.
Sheet metal design & optimization

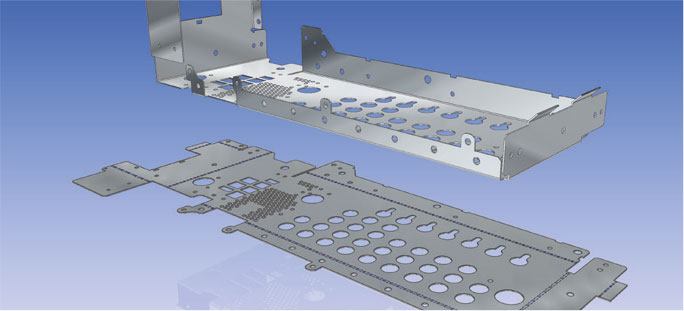

Convert models and assemblies into manufacturing-ready sheet metal parts – with tools for adjusting bends, corners, and flanges while considering production parameters. Fix overlaps and optimize flat patterns for nesting.
One software, multiple applications
Reverse engineering
DESIGNER offers end-to-end reverse engineering – from point cloud to solid model.
All steps take place in a single environment with direct modeling, enabling the efficient creation of manufacturing-ready digital twins.
2D to 3D

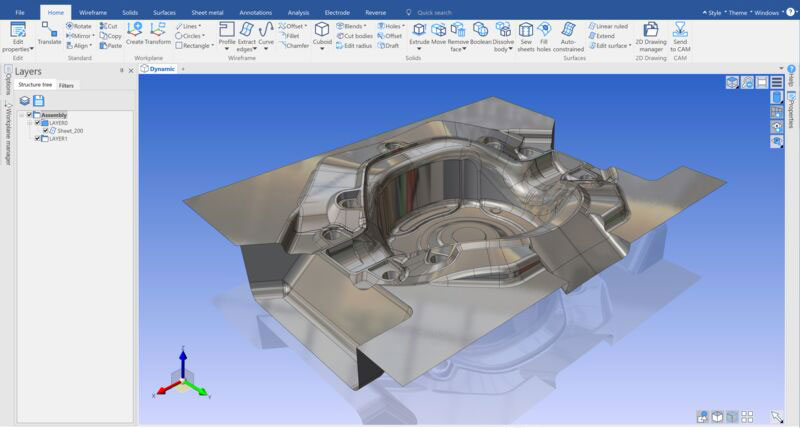

DESIGNER supports the import of 2D data, such as DXF and DWG files. These can be quickly and easily converted into manufacturing-ready 3D models. The imported 2D data automatically creates sketched profile regions, making the conversion from 2D to 3D easier than ever before.
Sheet metal
The sheet metal module in DESIGNER converts solid and surface models into manufacturing-ready sheet metal parts.
With direct modeling, bend control, and collision detection, it supports efficient adaptation and optimization for sheet metal processing.
Macros and scripting
With macro recording and JavaScript support, DESIGNER automates recurring design tasks.
Macros can be edited, combined, and executed multiple times – ideal for parametric part models and customized workflows.
Electrode creation
The optional electrode tool in DESIGNER accelerates electrode design in tool and mold making.
Thanks to direct modeling and repair functions, precise electrodes can be quickly derived from imported geometries.
Comprehensive range of CAD interfaces
DESIGNER supports numerous CAD formats and native data from leading systems.
Even large and complex files can be reliably imported, edited, and prepared for manufacturing.
Downloads
Technical Specifications
| Mindestanforderungen Hardware | Windows 10, 64 Bit: Es werden ausschließlich professionelle Versionen unterstützt. Prozessor mit SSE2-Unterstützung: Alle 64-Bit-Prozessoren unterstützen SSE2. Die Grafikkarte unterstützt entweder OpenGL oder DirectX: Mindestauflösung 1920x1080. Mindestens 65.000 Farben. OpenGL-Grafikkarten müssen OpenGL 3.0 unterstützen. DirectX-Grafikkarten müssen DirectX 9.0c unterstützen. 4 GB RAM. |
| Empfohlene Hardwareanforderungen | Windows 10 Creator und später. Grafik: 512 MB+ integrierter RAM. ATI FirePro Serie oder die NVidia Quadro Serie inkl. neueste Treiber. 16 GB RAM. SSD Festplatte. |
| Empfohlene Hardwareanforderungen für Reverse Engineering und Datenerfassung | Windows 10 Pro, 64 Bit. 64GB RAM. Intel Xeon Prozessor @3 GHz oder gleichwertig. NVIDIA Quadro P5000 mit 5 GB Speicher. |
